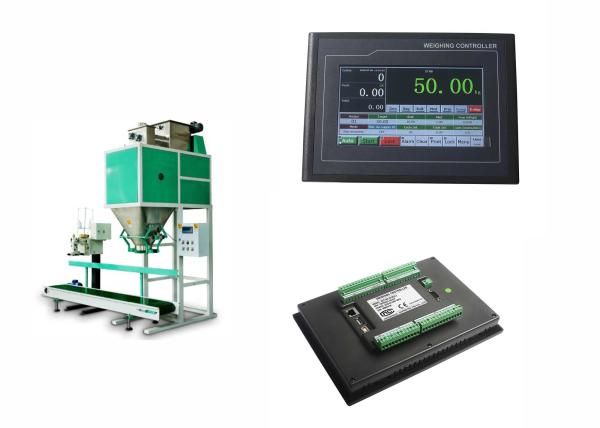

Single Hopper 10-50kg Organic Fertilizer Packing Scale Indicator, Weighing Hopper Instrument Scale for Grain Packing

Main Features:

² Suitable for Ration Packing Scale with optional Hopper-weighing Mode, Bag-weighing Mode and Loss-in-weight Mode.

² EMC design with high anti-jamming capability, suitable for industrial environment.

² Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.

² 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.

² Loadcell Interface

l Max. Connection Quantity: 16 Loadcells (350Ω).

l 24-bit High-precision and high-speed ∑-A/D conversion module with 1/1,000,000 internal resolution and samplingfrequency 800Hz.

l Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strongvibration on the load receptor, and the rapid response capability when the weight signal changes.

² I/O Interface

l 9 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].

l Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.

l 2 Definable analog signal AOs[0~10V] for weight signal output or ‘High/Medium/Low Speed Feed’ control.

² Digital Communication Interface

l COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.

l COM[RS232] for connecting RS232 Serial Printer.

Button Operation

Error Messages

Main User Interfaces

Changsha SUPMETER Technological Co., Ltd., as a council member of China Weighing Instrument Association (CWIA), is a high-tech enterprise which specializes in designing and manufacturing weighing/batching controller, force measuring controller, explosion-proof controller and related system software.

Since founded in 2004, SUPMETER is persisting in doing the same thing of ‘customizing satisfied products for you and building win-win cooperation with you’ and insisting on the core idea of ‘Being Super in Meter and Being Perfect in Service’. On the quality basic of ‘Accurate Weighing, Quick and Steady Control, Standard Communication Bus and Protocol, Suitable for Industrial Environment’, SUPMETER is doing the best to meet your individual requirements and to reach the enterprise goal of ‘Outstanding Quality, Continuous Improvement, Effective Service and Customer Satisfaction’.

The products of SUPMETER have been sold to over 1000 weighing equipment manufacturers from China, Germany, USA, Canada, Australia, Russia, Ukraine, Uzbekistan, Turkey, Pakistan, India, Thailand, Vietnam, Philippines, Malaysia, Indonesia, Singapore, Sri Lanka, South Africa, Nigeria, Zimbabwe, Iran, Saudi Arabia, Jordan, United Arab Emirates, Oman, Palestine, Mexico, Brazil, Argentina, Venezuela, Honduras, Bolivia, Chile, Peru and other countries and regions. And we have built long-time relationship of technical exchange and co-development with many famous enterprises. By tracking and applying international advanced technology and combining with all kinds of typical applications from the worldwide customers, SUPMETER has developed multiple high-quality products for customers and became a famous enterprise and brand in weighing, batching and force measuring field.

We will do our best to make our development more high-efficiency, quality more superior, service more enthusiastic and price more reasonable. SUPMETER, as your faithful team of product-development and technical service, is one of your best choices.

Executing Standard & Product Certification:

• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• OMIL R76: 2006《Non-automatic Weighing Instruments》International Recommendation.
• OMIL R50: 1997《Continuous Totalizing Automatic Weighing Instruments》.
• PRC Approval Certificate No. PA2006F108-43, PA2014F108-43.
• CE Certification No. CPC16/042377, CPC16/042376.
