    Miniature Weight Weighing Instrument / Indicator Force Measuring Control Module

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST106-M60S(L)
    Certification : CE
    Price : 30-50usd/pcs
    Payment Terms : L/C, T/T
    Supply Ability : 1000pcs/day
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    Miniature Weight Weighing Instrument / Indicator Force Measuring Control Module

    Miniature Weight Weighing Instrument/Indicator, Weighing / Force Measuring Control Module BST106-M60S(L)

    Main Features:

    • Applications: Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.
    • EMC design with high anti-jamming capability, suitable for industrial environment.
    • 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
    • 6+6 Red LED digital tubes for English character and digit display.
    • 4-key English keypad for Menu&Shortcut mode operation.
    • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and max. sampling frequency 3200Hz.
    • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
    • Max. Connection Quantity: 8 Loadcells (350Ω).
    • Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
    • Load Calibration, Data Calibration, Segmenting Span Correction and Segmenting Weight Calculation available.
    • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
    • 3 Definable normally open switch inputs [DI] and 3 definable normally open transistor switch outputs [DO].
    • 1 Optional&definable current signal output [AO: 0~20mA].
    • 1 Optional&definable voltage signal output [VO: 0~10V].
    • RS232, optional RS485 and CANBUS communication ports for connecting Host IPC/PLC and LED Remote Display.
    • With the multitasking mode, the weighing/force measuring process, alarm output and signal transmission will not be interrupted by parameter setting and the other operations.



    BST106-M60S[L] Guide Rail Type
    Weighing / Force Measuring Control Module
    Weight/Force Display, Peak Value Detection / Display Holding,
    Auto Weight-checking, Setpoint DO Output, AO/Digit Transmission

    Applications
    Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.


    Keypad Operation

    Key NameFunctionDescription
    【■】【MENU】Enter Main Menu / Exit.
    【LOCK】*Key-locking / Key-unlocking.
    【►】【►】Cursor shifts right.
    Display the previous interface or option.
    【ZERO】*Manual Zero without Power-down Protection.
    【▲】【▲】Display the next interface or option.
    Digit input: +1 ( 0~9 loop).
    【SET】*Setpoint Parameters Setting.
    8【ENT】Enter / Save / Clear Alarm.
    【CLS】*Clear Screen [Clear the display value of Peak Hold Value and Weight-checking Value].

    Installation


    Technical Specifications:

    Display
    LED number6+6 Red LED digital tubes for English character and digit display
    Weight Display Range-9,999~+99,999
    Scale CapacitySetting Range 1~99,999
    Scale DivisionOptional 1, 2, 5, 10, 20, 50, 100, 200, 500
    Display Resolution1/50,000
    Decimal Point PositionOptional 0, 0.0, 0.00, 0.000, 0.0000
    Display Refreshing TimeSetting Range 0.01~1.00s
    Keypad
    4-key English keypad for Menu&Shortcut mode operation
    Weighing Signal Interface
    Excitation Voltage/Max. CurrentDC5V/120mA [8-350Ω loadcells]
    Signal Input Range0~12.5mV
    Output Sensitivity of Loadcell1.0~2.5mV/V
    Optional Sampling Frequency3200Hz, 1600Hz, 800Hz, 400Hz, 200Hz, 5Hz
    Switch&Analog Signal Interface
    DI3 Optional&definable normally open switch inputs
    DO3 Optional&definable normally open transistor switch outputs
    AO0~20mA
    VO0~10V
    Digital Communication Interface
    COM1RS232
    COM2Optional RS485
    COM3Optional CANBUS
    ConnectableHost IPC/PLC and LED Remote Display

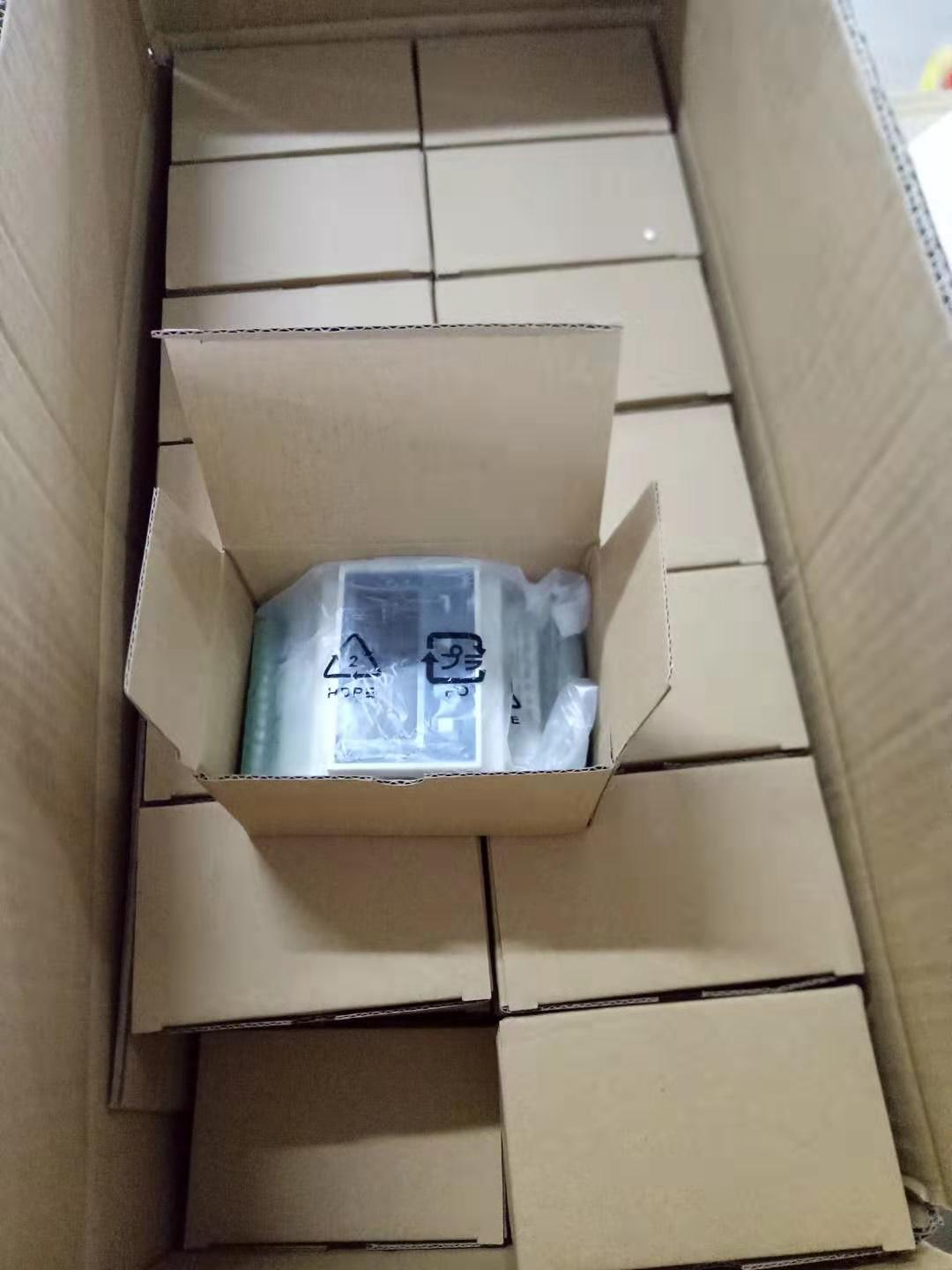

    Package
