NEW Shovel Loader Weighing Controller BST106-N59[B] is with metal
oil pressure sensor pipe and metal position sensor pipe. It can be
extend its service life effectively. There are some point need to
be paid attention to when making order:
1. If you need longer pipe, pls tell us exact length when making
order;
2. If the three-way joint of your loader is special, please tell us
the model number the loader you want o install or please send us
the detail information of theree-way jointyou need;
3. Standard configuration is with built-in printer, if you want to
connect a printer externally, that is ok, just tell us when making
order please.
What product does the whole set include?

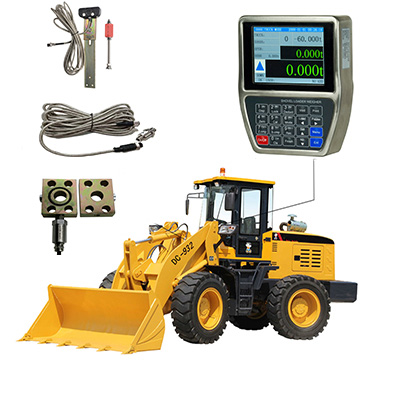

- 1 Weighing indicator with Built-in thermal printer.
- 1 Position sensor.
- 2 Oil pressure sensors.
- 2 Plate type three-way joints.
- 1 Mounting fitting.
BST106-N59[B] Suitable for the wheel loader series with loading
capacity 1~12t.
Specifications of Position Sensor
- HALL Type Proximity Switches
- Operating Voltage: DC5~24V.
- Detecting Distance: 1~8mm.
- Response Frequency: 5KHz.
- Quiescent Current:Max. 2mA.
- Thread Size: M8×1mm.
- Service Temperature: -25℃~+70℃.
- Protection Level: IP67.
Standard Detecting Target
- Permanent magnet.
- Outline Size: 30×10×5mm [L×W×T].
Specifications of Oil Pressure Sensor
- Operating Voltage: DC5V.
- Capacity: 0~25MPa.
- Accuracy: ±0.1%FS.
- Output Sensitivity: 2mV/V.
- Zero Drift: ±0.015%FS/℃.
- Safe Overload: 120%FS.
- Thread Size: M10×1mm.
- Service Temperature: -40℃~+125℃.
- Protection Level: IP67.
System Accuracy
- Accuracy Grade: III.
- Verification Accuracy of Weighing Indicator: 0.02%.
- Accuracy of Single-Bucket-Weight: 0.5%~1.0%.
- Accuracy of Totalized Loading Weight: 1.0%.
Technical Specifications:
| Display | 640×480 TFT color display screen for English character display |
| Weight Display Range | -99,999~+999,999 |
| System Weighing Range | 100~12,000kg |
| Scale Division | Optional 1, 2, 5, 10, 20, 50kg |
| Display Resolution | 1/100,000 |
| Position Sensor Input Interface | 2 Switch signal Input |
| Output Voltage | DC12V |
| Max. Output Current | 100mA |
| Oil Pressure Sensor Interface | 2 Switch signal Input |
| Excitation Voltage/Max.Current | DC12V/100mA & DC5V/100mA |
| Signal Input Range | Optional 0~20mV, 0~5V[Factory Set Value] |
| ∑-△ADC | 24-bit, 1,000,000 internal code used |
| Sampling Frequency | 400Hz |
| Non-linearity | 0.005%FS |
| Digital Communication Interface | COM1 | RS232 |
| Report Print | 10000 Loading Records can be saved, queried and printed, and each
record can contain 50pcs Single-bucket-loading-weight value |
| IP Grade | IP65 |
Mode Of Delivery:
FAQ:
1. What detailed information do I need to provide if I want to
place an order?
We need to know the following information: the model number of the
loader you want to install, the shape and size of cylinder joint of
your loader, the weight of single bucket, accuracy etc.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you
a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western
Union,etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your
payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are
fully checked by IQC, OQC departments before shipping to our
clients.
