BST100-E11D'E01D'E21D are digital type indicator used for belt scale system for batching and weighing.

Main Features:
1. Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
2. EMC design with high anti-jamming capability, suitable for industrial environment.
3. 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
4. 128×64 LCD display screen with 7 background colors for English display.
5. 16-key English keypad.
6. Menu&Shortcut mode operation with key tone.
7. Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy
when there is strong vibration on the load receptor, and the rapid response capability when the
weight signal changes.
8. Optional Digital Sensor Ports: CANBUS or RS485.
9. Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing
functions available.
10. Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
11. One optional „Flow Setpoint‟ analog signal input [AI: 4~20mA].
12. Max.3 definable „Flow/Control Current /…‟ analog signal outputs [AO: 4~20mA].
13. Quick and steady PID ration feeding control.
14. 3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch
outputs [DO].
15. The feeder and belt weigher can be started and stopped by DI&DO signal.
16. 1 „Totalized Weight High-speed Pulse‟ output [PO].
17. 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer
and Wireless Module.
18. Weight Records per shift/day/month of a year can be queried and printed.
19. With the multitasking mode, the weighing&control process will not be interrupted by parameter
setting and the other operations.

Digital Sensor Interface:

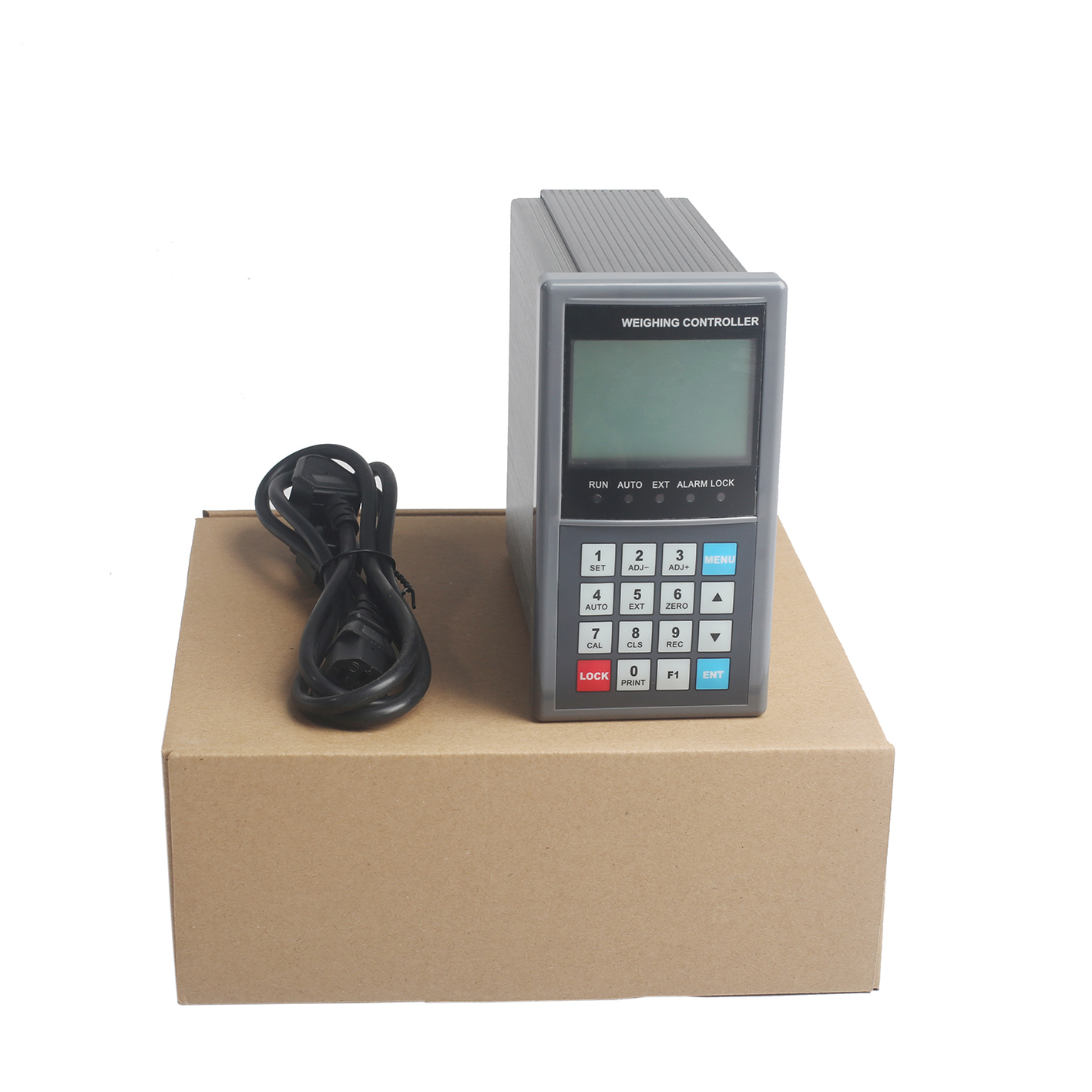

PackagePicture:

Differences between BST100-E11D/E01D/E21D:

1: Different install way:

BST100-E01D and BST100-E11D are cabinet mount mode;

BST100-E21D is Wall mount mode

2. The Prices are different:

BST100-E01D and E11D are with same price; BST100-E21D with different price. For details, please contact us.

Aftersale Service:

Changsha SUPMETER Technological Co., Ltd., as a council member of China Weighing Instrument Association (CWIA), is a high-tech enterprise which specializes in designing and manufacturing weighing/batching controller, force measuring controller, explosion-proof controller and related system software.

Since founded in 2004, SUPMETER is persisting in doing the same thing of ‘customizing satisfied products for you and building win-win cooperation with you’ and insisting on the core idea of ‘Being Super in Meter and Being Perfect in Service’. On the quality basic of ‘Accurate Weighing, Quick and Steady Control, Standard Communication Bus and Protocol, Suitable for Industrial Environment’, SUPMETER is doing the best to meet your individual requirements and to reach the enterprise goal of ‘Outstanding Quality, Continuous Improvement, Effective Service and Customer Satisfaction’.

The products of SUPMETER have been sold to over 1000 weighing equipment manufacturers from China, Germany, USA, Canada, Australia, Russia, Ukraine, Uzbekistan, Turkey, Pakistan, India, Thailand, Vietnam, Philippines, Malaysia, Indonesia, Singapore, Sri Lanka, South Africa, Nigeria, Zimbabwe, Iran, Saudi Arabia, Jordan, United Arab Emirates, Oman, Palestine, Mexico, Brazil, Argentina, Venezuela, Honduras, Bolivia, Chile, Peru and other countries and regions. And we have built long-time relationship of technical exchange and co-development with many famous enterprises. By tracking and applying international advanced technology and combining with all kinds of typical applications from the worldwide customers, SUPMETER has developed multiple high-quality products for customers and became a famous enterprise and brand in weighing, batching and force measuring field.

We will do our best to make our development more high-efficiency, quality more superior, service more enthusiastic and price more reasonable. SUPMETER, as your faithful team of product-development and technical service, is one of your best choices.

Executing Standard & Product Certification:

• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• OMIL R76: 2006《Non-automatic Weighing Instruments》International Recommendation.
• OMIL R50: 1997《Continuous Totalizing Automatic Weighing Instruments》.
• PRC Approval Certificate No. PA2006F108-43, PA2014F108-43.
• CE Certification No. CPC16/042377, CPC16/042376.
