Rapid Dynamic Response Mini Weighing Force Measuring Controller With Modbus

Technical Specification
Display

• 5 Red LED digital tubes for English character and digit display.
• Weight Display Range: -9,999~+99,999.
• Scale Capacity: Setting Range 1~99,999.
• Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
• Display Resolution: 1/50,000.
• Decimal Point Position: Optional 0, 0.0, 0.00, 0.000, 0.0000.
• Display Refreshing Time: Setting Range 0.01~1.00s.

Keypay

• 4-key keypad for Menu&Shortcut mode operation.

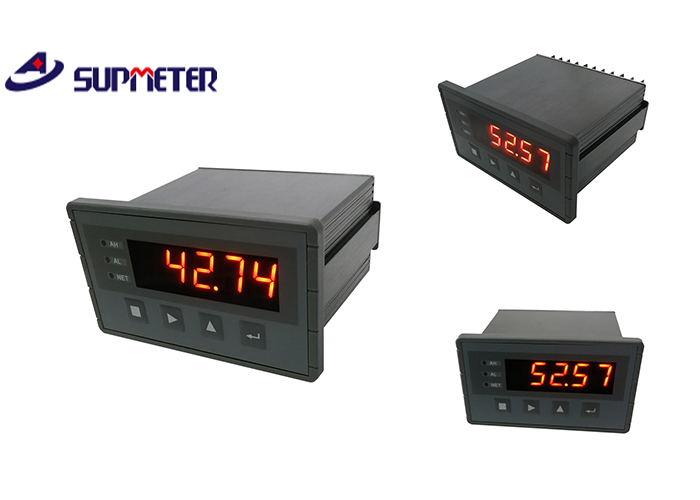

Model Panel-mounting Operation Interface


User Interface Diagram


Weighing Signal Interface

• Excitation Voltage / Max. Current 1: DC5V/120mA for 8-350Ω loadcells.
• Excitation Voltage / Max. Current 2: DC12V/100mA for weighing transmitter.
• Optional weighing input signal mV, V and mA for connecting ‘【mV】Output Type Loadcell’, ‘【V】Voltage Output Type Weighing Transmitter’ and ‘【mA】 Current Output Type Weighing Transmitter’.
• 【mV】Signal Input Range: 0~19.5mV [Output Sensitivity of Loadcell: 1.0~3.5mV/V].
• 【V】Signal Input Range: 0~2.5V, 0~5V, 0~10V.
• 【mA】Signal Input Range: 0~20mA.
• 24-bit ∑-△ADC with internal resolution 1/1,000,000.
• Optional Sampling Frequency: 1280Hz, 640Hz, 40Hz, 10Hz.
• Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
• Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
• Gain Drift: ±5ppm/℃.
• Non-linearity: 0.005%FS.
