    Belt Loss In Weight Weighfeeder Controller With Ration Flow Feeding / Weight Totalizing

    Ask Lasest Price
    Brand Name : SUPMETER
    Model Number : BST100-A11+
    Certification : CE
    Price : negotiating
    Payment Terms : T/T, Western Union
    Supply Ability : 200pcs/month
    Delivery Time : 5-15 qorking days
    • Product Details
    • Company Profile

    Belt Loss In Weight Weighfeeder Controller With Ration Flow Feeding / Weight Totalizing

    Belt Loss In Weight Weighfeeder Controller With Ration Flow Feeding / Weight Totalizing


    Main Application:

    Belt Weigher with Weight Totalizing

    Ration Belt Weighfeeder with Ration Flow Feeding

    Loss-in-weight Weighfeeder with Ration Flow Feeding


    Main Features:

    1:32-bit ARM CPU with 72MHz clock and high arithmetic speed.

    2: Zero Calibration&Auto Zero Tracking

    3: Span Calibration&Segmenting Correction

    4: Speed Calibration&Belt Length Calibration

    5: The feeder and belt weigher can be controlle DI&DO.y

    6: Quick and steady PID ration feeding control

    7: Definable DI/DO/AO/COM[Communication Port]


    Technical Specifications:

    Power SupplyAC220V±15%
    Display

    LCD display screen with 7 background colors;

    4+4 Red Led Digital Tubes for Digit Display

    Sampling Frequency400Hz
    A/D Convert24-bit
    Keypad8 keys for Menu&Shortcut mode operation with key tone
    Excitation Voltage Output of LoadcellDC10V
    Max. Connection number of Loadcell8 Loadcells (350Ω)
    DI3 Normally Open Switch Inputs
    DO4 Normally Open Transistor Switch Outputs
    AO2'PID Control' Analog Output: 4~20mA.
    Communication PortCOM1:Optianal RS232/RS485/RS422/Profibus-DP/Ethernet; COM2:RS232
    Outline Dimension170 × 100 × 193 mm (W×H×D)
    Net WeightApprox. 2kg
    IP GradeIP65
    Accuracy of Flow Control0.5%~1.0%
    Operatiing Temperature-25℃~+45

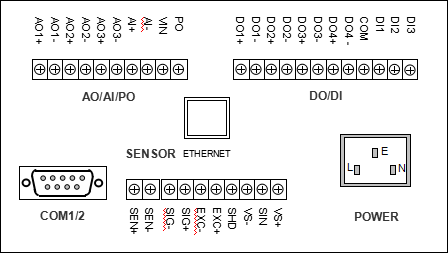

    Terminal:


    Ration Flow Auto-Feeding System
