    Wall Mount Packing Bagging Controller With HMI Display And High Precision

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST106-M10[BH]
    Certification : CE
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 500pcs/months
    Delivery Time : 5-15 working days
    • Product Details
    • Company Profile

    Wall Mount Packing Bagging Controller With HMI Display And High Precision

    Wall Mount Packing Indicator Controller With HMI Display And High Precision


    Basic information:


    Size7 inch and 10 inch
    Rated VoltageDC24V
    Application ModeDouble packing/bagging scale and single packing/bagging scale
    Display16-bit Color screen with 800×480
    installationWall mounted
    Operating Temperature-25℃ to +45℃
    Storage Temperature-30℃ to +60℃
    Relative HumidityMax. 85%RH

    Terminals:


    9 Definable Normally Open Switch Inputs [DI]

     18 Definable Normally Open Transistor Switch Outputs [DO]: DC24V, 500mA

     2 Definable Analog Signal Output [AO]: 0~10V/Max.50mA, Non-linearity: 0.05%FS

     COM1[RS232]&COM2[RS485]

     USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk

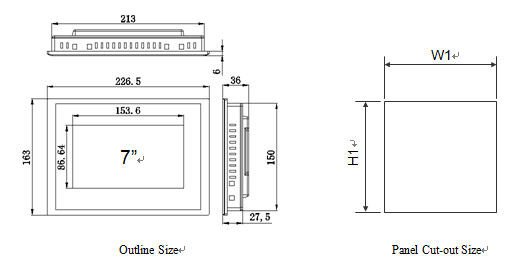

    Demension

     Outline Size: 226.5×163×36mm [W×H×D]

     Window Size: 153.6×86.64mm [W×H]

     Panel Cut-out Size: 215×152mm [W×H]


    Wall Mount Packing Bagging Controller With HMI Display And High Precision

    Installation Mode

    Wall mounted. It can be hanged on wall with screw. The relative installation accessories are put in the box with indicator. Or you can install it in a metal box.


    Wall Mount Packing Bagging Controller With HMI Display And High Precision

    FAQ:


    Q1. Can I have a sample order for weighing indicator?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 100pcs.

    Q3. Do you have any MOQ limit for order?

    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order for weighing indicator?

    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

    Q6. Is it OK to print my logo on the overlay of weighing indicator?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Customization overlay is free once the quantity more than 20pcs.

    Q7: Do you offer guarantee for the products?

    A: Yes, we offer 12 months warranty to our products.

    Q8: How to deal with the faulty?

    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
    than 0.2%.
    Secondly, during the guarantee period, we will send new component or new weighing indicator with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution i
    ncluding re-call according to real situation.
