High Accuracy Grade 0.5 Digital Led Weighing Indicator for Belt Scale

Data Clearing Mode Description:

• Manual Clearing Mode

• 1 Clear Screen: Clear Totalized Weight and Totalized Weight Pulse Count. But Totalized Weight of Current Shift will not be cleared, so this operation has no effect on recording of weight per shift.
• 2 Clear Weight: Clear Totalized Weight, Totalized Weight Pulse Count and Totalized Weight of Current Shift. The cleared value of Totalized Weight of Current Shift will not be recorded.
• 3 Clear Records: Clear History Records of Totalized Weight. But Current Totalized Weight, Totalized Weight Pulse Count and Totalized Weight of Current Shift will not be cleared.

• Timing Auto Clearing Mode

• The parameter ‘[P606] Auto-clear’ can be set to ‘0: OFF / 1: Per Shift / 2: Per Day / 3: Per Month’, and its default value is ‘0: OFF’.
• ‘Timing Auto Clearing’ has no effect on recording of weight per shift.
• [P606]=‘1: Per Shift’: After recording Totalized Weight per Shift, do operation ‘Clear Screen’ automatically.
• [P606]=‘2: Per Day’: After recording Totalized Weight of the last Shift per Day, do operation ‘Clear Screen’ automatically.
• [P606]=‘3: Per Month’: After recording Totalized Weight of the last Shift per Month, do operation ‘Clear Screen’ automatically.

• Auto Clearing Before Overflowing Mode

• When Totalized Weight value reaches to the maximum value 2×10⁹[Scale Unit], do operation ‘Clear Screen’ automatically.
• ‘Auto-clear Before Overflowing’ has no effect on recording of weight per shift.

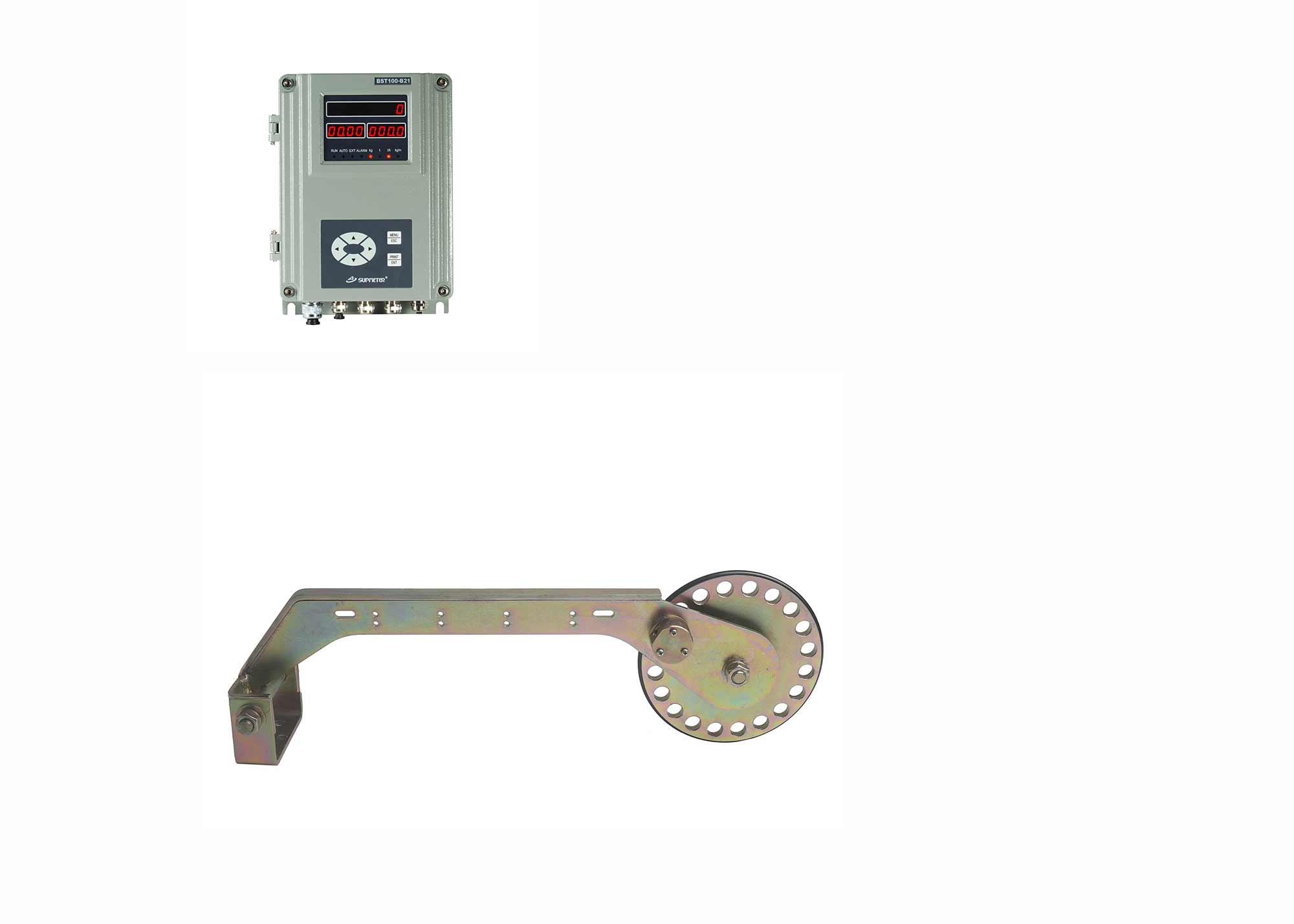

Model Panel-mounting / Wall-mounting Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.

Technical Specifications
 Power Supply: DC24V±20%, Max. 5W.
 Loadcell Excitation Voltage/Current: DC5V/120mA.
 8 Loadcells[350Ω] connectable.
 Transmitter Excitation Voltage/Current: DC12V/100mA.
 Optional weighing input signal mV, V and mA.
 【mV】Signal Input Range: 0~19.5mV.
 【V】Signal Input Range: 0~2.5V, 0~5V, 0~10V.
 【mA】Signal Input Range: 0~20mA.
 2 Normally open/closed Relays [DO]: AC250V/DC24V, 1A.
 1 Analog Signal Output [AO]: 0~20mA, 0.05%FS.
 COM1: RS232.
 COM2: RS485.
 Connect Host IPC[Modbus] & Remote Display.
 Outline Size [W×H×D]: 107 × 60 × 100 mm.
 Panel Cut-out Size [W×H]: 94 × 47 mm.
 Operating Temperature: -25℃～+45℃.
 Protection Level of Front Panel: IP65.
 Accuracy Grade: III.
 Verification Accuracy: 0.03%.
 Static Weighing / Force Measuring Accuracy: 0.2%~0.5%.

Model Panel-mounting User Interface

Model Panel-mounting Terminal

Ration Flow Auto-Feeding System:

Changsha SUPMETER Technological Co., Ltd., as a council member of China Weighing Instrument Association (CWIA), is a high-tech enterprise which specializes in designing and manufacturing weighing/batching controller, force measuring controller, explosion-proof controller and related system software.

Since founded in 2004, SUPMETER is persisting in doing the same thing of ‘customizing satisfied products for you and building win-win cooperation with you’ and insisting on the core idea of ‘Being Super in Meter and Being Perfect in Service’. On the quality basic of ‘Accurate Weighing, Quick and Steady Control, Standard Communication Bus and Protocol, Suitable for Industrial Environment’, SUPMETER is doing the best to meet your individual requirements and to reach the enterprise goal of ‘Outstanding Quality, Continuous Improvement, Effective Service and Customer Satisfaction’.

The products of SUPMETER have been sold to over 1000 weighing equipment manufacturers from China, Germany, USA, Canada, Australia, Russia, Ukraine, Uzbekistan, Turkey, Pakistan, India, Thailand, Vietnam, Philippines, Malaysia, Indonesia, Singapore, Sri Lanka, South Africa, Nigeria, Zimbabwe, Iran, Saudi Arabia, Jordan, United Arab Emirates, Oman, Palestine, Mexico, Brazil, Argentina, Venezuela, Honduras, Bolivia, Chile, Peru and other countries and regions. And we have built long-time relationship of technical exchange and co-development with many famous enterprises. By tracking and applying international advanced technology and combining with all kinds of typical applications from the worldwide customers, SUPMETER has developed multiple high-quality products for customers and became a famous enterprise and brand in weighing, batching and force measuring field.

We will do our best to make our development more high-efficiency, quality more superior, service more enthusiastic and price more reasonable. SUPMETER, as your faithful team of product-development and technical service, is one of your best choices.

Executing Standard & Product Certification:

• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• OMIL R76: 2006《Non-automatic Weighing Instruments》International Recommendation.
• OMIL R50: 1997《Continuous Totalizing Automatic Weighing Instruments》.
• PRC Approval Certificate No. PA2006F108-43, PA2014F108-43.
• CE Certification No. CPC16/042377, CPC16/042376.
