    Intelligent Weighing Indicator / Weighing Controller For Conveyor Belt Scale With RS232

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST100-D12
    Certification : CE
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs/month
    Delivery Time : 3-10 working days
    • Product Details
    • Company Profile

    Intelligent Weighing Indicator / Weighing Controller For Conveyor Belt Scale With RS232


    Intelligent Weighing Indicator For Conveyor Belt Scale With RS232


    1. Main Features:

    • Suitable for belt weigher.
    • EMC design with high anti-jamming capability, suitable for industrial environment.
    • 32-bit ARM CPU with 72MHz & higher arithmetic speed.
    • 160×32 dots LCD display screen with yellow-green background for English display.
    • Menu&Shortcut mode operation with key tone.
    • High-precision ∑-△A/D conversion technology and broad-range speed pulse input circuit.
    • Max. Connection Quantity: 8 Loadcells (350Ω).
    • Auto-locking, Key-locking, Key-unlocking and Digital Setting&Calibration functions available.
    • Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
    • Optional AO [4~20mA] module for Flow signal output (COM1 port will be occupied).
    • 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
    • Corrosion-proof, water-proof, dust-proof and shock-proof shell for model wall-mounting.
    • Weight Records per shift/day/month of a year can be queried and printed.
    • With the multitasking mode, the weighing process will not be interrupted by parameter setting and the other operations.

    2.Technical Specifications

    • Power Supply: AC220V±15%, 50/60Hz, Max. 10W.
    • Loadcell Excitation Voltage/Current: DC10V/250mA.
    • 8 Loadcells[350Ω] connectable.
    • Weighing Signal Input Range: 0~25mV.
    • Speed Sensor Excitation Voltage/Current: DC12V/100mA.
    • Speed Signal Input Range: 0.5~3000Hz.
    • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
    • COM2: RS232.
    • Connect Host IPC, Remote Display, Printer&Wireless Module.
    • Optional 4~20mA Analog Output [AO] Module by COM1.
    • Outline Size [W×H×D]: 235.5 × 227.5 × 119.5 mm.
    • Operating Temperature: -25℃~+45℃.
    • Protection Level: IP65.
    • Accuracy Grade: 0.5.

    3. Operation Interface

    3.1 Model Panel-mounting / Wall-mounting Operation Interface


    3.2 Model Panel-mounting / Wall-mounting Keypad Operation

    If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the Indicator will return to ‘Main Display Interface’ automatically.


    Menu Operation
    Key NameDescription
    【MENU】Enter Main Menu / Exit.
    【ENT】

    Enter/Save.

    Return to the initial display interface.

    【▲】

    Cursor shifts up or left.

    Display the previous interface or option.

    【▼】

    Cursor shifts down or right.

    Display the next interface or option.

    【0~9】Digit Input.
    Quick Operation
    【LOCK】

    Key-locking.

    Key-unlocking.

    【F1】Static Span Calibration with Hanging Weight.
    【ZERO】Zero Calibration.
    【CAL1】Dynamic Span Calibration.
    【CAL2】Static Span Calibration with Chain Weight.
    【SEG】Segmenting Span Correction.
    【SPD】Speed Calibration.
    【LEN】Belt Length Calibration.
    【TIME】Date/Time Setting.
    【CLS】Clear Screen.
    【REC】Query and Print Weight Record.
    【PRINT】Print.

    Model Panel-mounting Installation


    Model Wall-mounting Installation

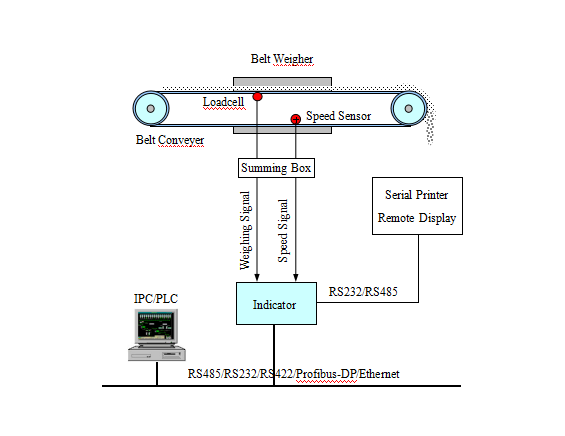

    Belt Weighing System
