4-Scale TFT-Touch Ration Batching Controller, Digital Weight Indicator For Ration Batching Scale

Main Features:

• Suitable for Ration Batching Scale with 4-material&2-speed feeding [Single-scale Mode & Four-scale Mode].
• EMC design with high anti-jamming capability, suitable for industrial environment.
• Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
• 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
• Loadcell Interface

• 4 Loadcell ports. Max. Connection Quantity: 4×4 Loadcells (350Ω).
• 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
• Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.

• I/O Interface

• 7 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
• Optional ‘High/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
• 4 Definable analog signal AO[0~10V] for weight signal output or ‘High/Low Speed Feed’ control.

• Digital Communication Interface

• COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
• COM[RS232] for connecting RS232 Serial Printer.
• USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.

• Software Function

• Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
• Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
• Load Calibration and Loss Calibration functions available.
• 10 Recipes for batching control.
• Optional ‘Fall Value Auto Correction’ function.
• Optional ‘Auto Pause for Deviation Alarm’, ‘Auto Pause while Gross Weight Upper Limit Alarming’, ‘Manual Pause’ and ‘Auto Re-feed’ functions.
• Optional ‘Target Batch Control’ function [With Target Batch Count finished, the batching process will stop automatically].
• The Batch Records can be printed automatically.
• Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.

With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

Pictures

Button Operation

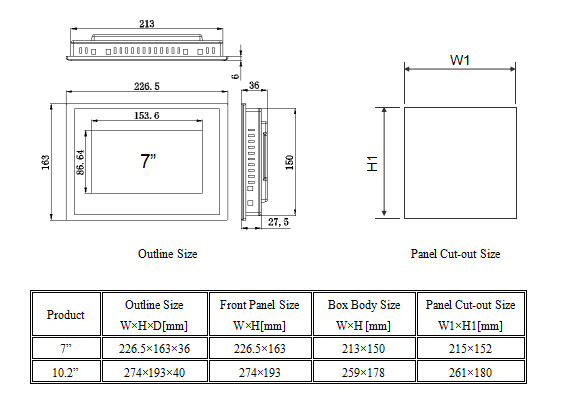

Outline Size

Terminal Diagram
