TFT-Touch Digital Weight Indicator With Auto Checkweigher And Rejecting Mode

Main Features:

• Suitable for Auto Checkweigher. Optional Application Modes: Rejecting Mode [Low/Normal/High] and Weight Sorting Mode with 3-12 Sorting Areas. Optional Control Modes for Feeding /Checking/Sorting Conveyors: DO Switch Control Mode, PWM Speed Regulation Mode and AO[0-10V] Speed Regulation Mode.
• EMC design with high anti-jamming capability, suitable for industrial environment.
• Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
• 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
• Loadcell Interface

• Max. Connection Quantity: 16 Loadcells (350Ω).
• 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
• Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.

• I/O Interface

• 7 Normally open switch inputs [DI] and 18 normally open transistor switch outputs [DO].
• 4 Definable analog signal AO[0~10V] for weight signal output or conveyor speed control.

• Digital Communication Interface

• COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
• COM[RS232] for connecting RS232 Serial Printer.
• USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.

• Software Function

• Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
• Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
• Static Calibration and Dynamic Compensation functions available.
• Definable DI funtion of ‘Photo-electric Identification’ for identifing the unchecked product entering the weigher.
• Optional Weight-checking Mode: Dynamic Mode and Static Mode.
• Optional 3-12 Sorting Areas with Batch Counting, Weight Totalizing and DO outputs.
• 100 Recipes for weight-checking&sorting control.
• The Batch Records can be printed automatically.
• The Totalizing Reports and Recipes can be queried and printed.
• With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

Pictures

Button Operation

Data Display & Quick Setting

Outline Size

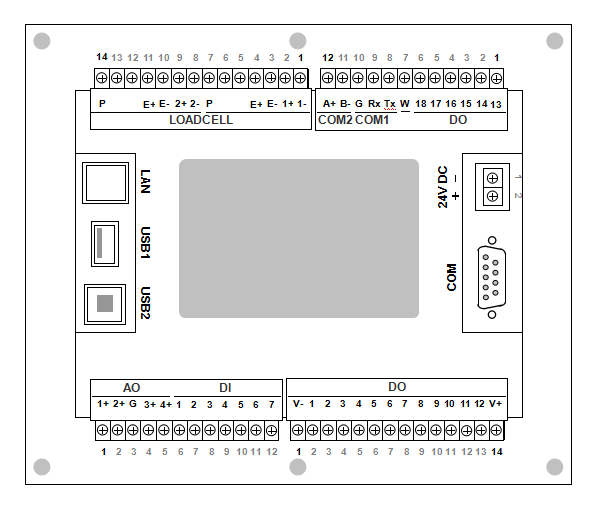

Terminal Diagram

System Diagram for APP1 Rejecting Mode

System Diagram for APP2 Weight Sorting Mode [3-12 Sorts]

Changsha SUPMETER Technological Co., Ltd., as a council member of China Weighing Instrument Association (CWIA), is a high-tech enterprise which specializes in designing and manufacturing weighing/batching controller, force measuring controller, explosion-proof controller and related system software.

Since founded in 2004, SUPMETER is persisting in doing the same thing of ‘customizing satisfied products for you and building win-win cooperation with you’ and insisting on the core idea of ‘Being Super in Meter and Being Perfect in Service’. On the quality basic of ‘Accurate Weighing, Quick and Steady Control, Standard Communication Bus and Protocol, Suitable for Industrial Environment’, SUPMETER is doing the best to meet your individual requirements and to reach the enterprise goal of ‘Outstanding Quality, Continuous Improvement, Effective Service and Customer Satisfaction’.

The products of SUPMETER have been sold to over 1000 weighing equipment manufacturers from China, Germany, USA, Canada, Australia, Russia, Ukraine, Uzbekistan, Turkey, Pakistan, India, Thailand, Vietnam, Philippines, Malaysia, Indonesia, Singapore, Sri Lanka, South Africa, Nigeria, Zimbabwe, Iran, Saudi Arabia, Jordan, United Arab Emirates, Oman, Palestine, Mexico, Brazil, Argentina, Venezuela, Honduras, Bolivia, Chile, Peru and other countries and regions. And we have built long-time relationship of technical exchange and co-development with many famous enterprises. By tracking and applying international advanced technology and combining with all kinds of typical applications from the worldwide customers, SUPMETER has developed multiple high-quality products for customers and became a famous enterprise and brand in weighing, batching and force measuring field.

We will do our best to make our development more high-efficiency, quality more superior, service more enthusiastic and price more reasonable. SUPMETER, as your faithful team of product-development and technical service, is one of your best choices.

Executing Standard & Product Certification:

• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• OMIL R76: 2006《Non-automatic Weighing Instruments》International Recommendation.
• OMIL R50: 1997《Continuous Totalizing Automatic Weighing Instruments》.
• PRC Approval Certificate No. PA2006F108-43, PA2014F108-43.
• CE Certification No. CPC16/042377, CPC16/042376.
