1/4-CH TFT-Touch Force Measuring Controller, Electronic Weighing Indicator For Force Measuring System

Main Features:

• Suitable for 1-4 Channels Force Measuring System.
• Optional Peak Detection Modes: Positive Direction Mode / Negative Direction Mode / Double Direction Mode.
• Optional System Modes: Combination Mode / Respective Mode.
• Optional Peak Detection Start&Stop Modes: Threshold Mode / DI Switch Mode.
• EMC design with high anti-jamming capability, suitable for industrial environment.
• Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
• 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
• Loadcell Interface

• 4 Loadcell ports. Max. Connection Quantity: 4×4 Loadcells (350Ω).
• 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/130,000 internal resolution and sampling frequency 3200Hz.

• I/O Interface

• 7 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
• 4 Definable analog signal AO[0~10V] for force signal output.

• Digital Communication Interface

• COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
• COM[RS232] for connecting RS232 Serial Printer.
• USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.

• Software Function

• Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
• Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
• Positive/Negative Load Calibration and Segmenting Span Correction functions available.
• 100 Recipes for force measuring and control.
• With the multitasking mode, the measuring&control process will not be interrupted by parameter setting and the other operations.

Pictures

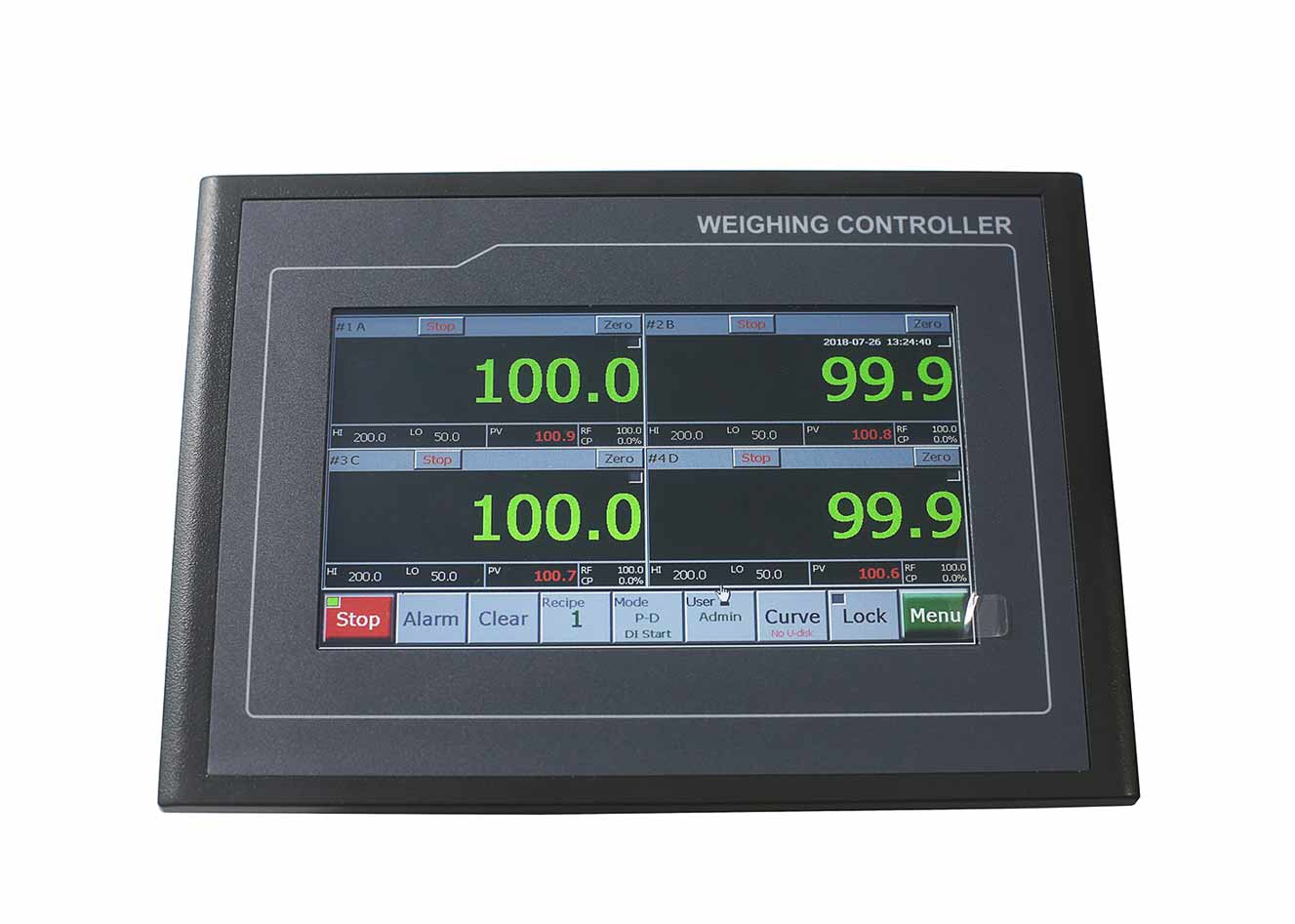

Main Operation Interface

Button Operation

Outline Size

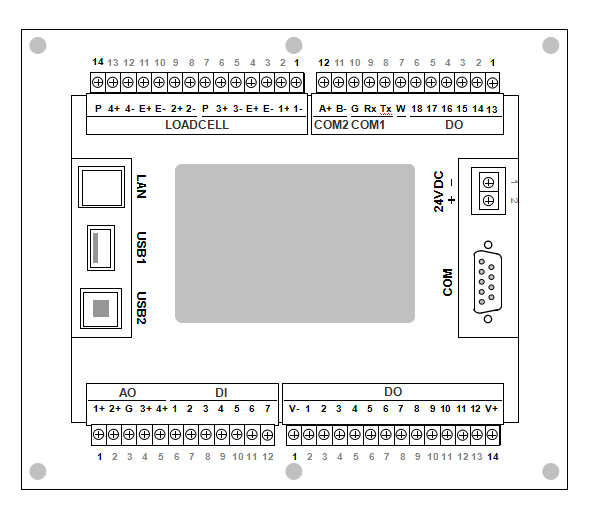

Terminal Diagram
