    Electronic Wheel Loader Scales, Loader Weighing Scales With Stainless Steel Shell

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST106-N59(B)
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 300pcs per month
    Delivery Time : 3-20 days
    • Product Details
    • Company Profile

    Electronic Wheel Loader Scales, Loader Weighing Scales With Stainless Steel Shell

    Electronic Wheel Loader Scales, Loader Weighing Scales With Stainless Steel Shell


    Main Features:

    • EMC design with high anti-jamming capability, suitable for industrial environment.
    • DC24V power input circuit with reverse polarity protection function.
    • 32-bit ARM CPU with 72MHz & higher arithmetic speed.
    • Dust-proof stainless steel shell with protection level IP65.
    • 640×480 TFT color display screen for English character display.
    • The display informations of Bucket Lifting/Declining state, Single-bucket-loading-weight, Totalized Loading Weight, Positive/Negative Deviation Value, Alarm state, Date/Time and other auxiliary data are used for judging if Single-bucket-loading-weight is valid and the loading process should be stopped.
    • 20-key English keypad with controllable backlight.
    • Number and English Alphabet can be inputted.
    • The informations of User Name, Truck No., Goods No. and Operator No. can be inputted.
    • Upper/Lower Limit of Single-bucket-loading-weight, Setpoint of Totalized Loading Weight and Date/Time can be set.
    • Operating Time, Single-bucket-loading-weight, Totalized Loading Weight and Alarm Information can be recorded automatically.
    • Using two oil pressure sensors for higher weighing accuracy than using one.
    • 24-bit ∑-△ADC with internal resolution 1/1,000,000 and sampling frequency 400Hz.
    • High sampling frequency, anti-vibration digital filter and acceleration compensation algorithm for ensuring high weighing accuracy in the lifting process of the bucket.
    • 10000 Loading Records can be saved, queried and printed, and each record can contain 50 Single-bucket-loading-weight value.

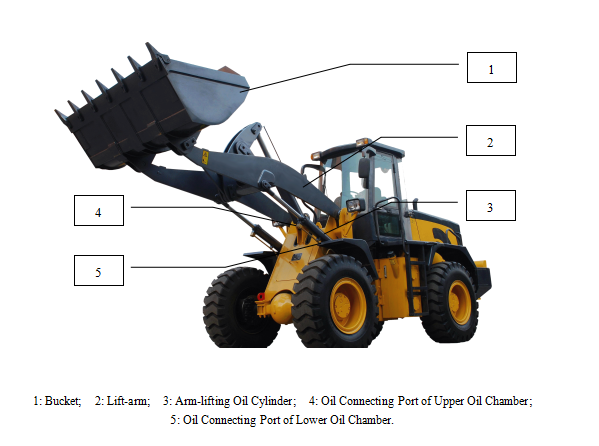

    Structure of Wheel loader

    Related Operation Terms:

    • Arm-up: Lift the lift-arm so that the bucket rises.
    • Arm-down: Put the lift-arm down so that the bucket goes down to the lowest position.
    • Bucket-up: Flip the bucket upward to the limit position.
    • Bucket-down: Flip the bucket downward.
    • Discharge: Flip the bucket downward for discharging materials.

    Main Menu

    Main MenuSecond MenuDescription

    F1: SET
    [F1 Parameter Setting]

    1 WeighingWeighing parameters setting.
    2 CalibrationCalibration parameters setting.
    3 SetpointSetpoint parameters setting.
    4 AlarmAlarm parameters setting.
    5 CommuncationCommunication parameters setting.
    6 DisplayDisplay and operation interface parameters setting.
    7 Time

    Time parameter setting.

    • Date [Parameter [903] Date Format]
    • Time [Hour: Minute: Second]
    • Week [ Monday ~ Sunday]

    F2: CAL
    [F2 System Calibration]

    1 Zero Cal. [Unload&Idle]

    Zero Calibration.
    Lift the lift-arm and bucket of wheel loader with unloading and idle speed for correcting Zero Value, Run Length Ratio or IdleAcc.Value (Acceleration Value at Idle Speed).

    2 Zero Comp. [Unload&ACC]

    Zero Compensation.
    Lift the lift-arm and bucket wheel loader with unloading and accelerating for correcting Zero Compensation Coefficient.

    3 Span Cal. [Load&Idle]

    Span Calibration.
    Lift the lift-arm and bucket wheel loader with loading and idle speed for correcting Span Coefficient.

    4 Span Comp. [Load&ACC]

    Span Compensation.
    Lift the lift-arm and bucket wheel loader with loading and accelerating for correcting Span Compensation Coefficient.

    F3: REC
    [F3 Record Management]

    1 Query Truck RecordsQuery Truck Loading Records.
    2 Query Mixing RecordsQuery Mixing Records.
    3 Query Shift RecordsQuery Shift Records.
    4 Clear Truck RecordsClear Truck Loading Records.
    5 Clear Mixing RecordsClear Mixing Records.
    6 Clear Shift RecordsClear Shift Records.
    7 USB-Copy Truck RecordsCopy Loading Records without Single-bucket-loading -weight to U-disk.
    8 USB-Copy Detail RecordsCopy Loading Records with Single-bucket-loading-weight to U-disk.
    9 USB-Copy Detail RecordsCopy the Shift Records to U-disk.

    Main MenuSecond MenuDescription

    F4: LOC
    [F4 Key-locker]

    1 Key-unlockingUnlocking keypad.
    2 Key-lockingLocking keypad.
    3 Password Set

    Exfactory Passwords:

    • Operator Password: 000000.
    • Administrator Password: 000001.

    F5: FAC
    [F5 Factory Adjustment]

    Special for manufacturer.
    1 Hardware TestAD Value of Oil Pressure Signal Linearity Test and Position Signal Test.
    2 Simplified ChineseDownload Simplified Chinese.
    3 Complex ChineseDownload Complex Chinese.
    4 Parameter BackupParameter Backup.
    5 Parameter RecoveryParameter Recovery.
    6 Reset DefaultsReset to factory defaults.

    F6: INF
    [F6 Product Information]

    Only for query.
    1 Version No.1 Version No.
    2 Serial No.2 Serial No.
    3 Exfactory Date3 Exfactory Date.
    4 ID CodeID Code.
