    DC24V Digital Weight Indicator 4 Key English Keypad For Bagging Ration Packing Scale

    LED Ration Packing Controller Single-Weighing-Hopper/Bagging Ration Packing Scale


    Main Features:

    • Suitable for Ration Packing Scale. Optional Application Modes: Single-hopper-weighing Mode [Single-scale Mode], Double-hopper-weighing Mode [Double-scale Mode] and Bag-weighing Mode with Auto Bag-releasing or Manual Bag-releasing.
    • EMC design with high anti-jamming capability, suitable for industrial environment.
    • 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.
    • 6+8 Red LED digital tubes for English character and digit display.
    • 4-key English keypad.
    • Menu&Shortcut mode operation with key tone.
    • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
    • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
    • Max. Connection Quantity: 4 Loadcells (350Ω).
    • Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.
    • Optional Data Calibration function.
    • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
    • 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
    • Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
    • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Medium/Low Speed Feed’ control.
    • Optional ‘Fall Value Auto Correction’ function.
    • Optional ‘Auto Pause for Deviation Alarm’ function.
    • Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].
    • 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
    • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.





    Technical Specification

    • Executing Standard
    • CMC GB/T 7724-2008PRC National Standard.
    • OMIL R76: 2006International Recommendation.
    • Accuracy Grade: III.
    • Verification Accuracy: 0.03%.
    • Static Weighing Accuracy: 0.2%~0.5%.
    • Packing Accuracy: 0.2%~0.5%.
    • Display
    • 6+8 Red LED digital tubes for English character and digit display.
    • Weight Display Range: -99,999~+999,999.
    • Scale Capacity: Setting Range 1~999,999.
    • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
    • Display Resolution: 1/100,000.
    • Weight Unit: Optional kg, t, g, none.
    • Decimal Point: Optional 0, 0.0, 0.00, 0.000, 0.0000.
    • Display Refreshing Time: Setting Range 0.01~1.00s.
    • Kaypad
    • Model Panel-mounting: 4-key English keypad.
    • Model Explosion-proof: 6-key English keypad.
    • Menu&Shortcut mode operation with key tone.
    • Loadcell Interface
    • Excitation Voltage/Max. Current: DC9V/120mA [4-350Ω loadcells].
    • Signal Input Range: 0~22.5mV.
    • Output Sensitivity of Loadcell: 1.0~2.5mV/V.
    • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
    • Sampling Frequency: 400Hz.
    • Special anti-vibration digital filtering algorithm.
    • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
    • Gain Drift: ±5ppm/℃.
    • Non-linearity: 0.005%FS.
    • Switch&Analog Signal Interface
    • 6 Normally Open Switch Inputs [DI].
    • 8 Normally Open Transistor Switch Outputs [DO]: DC24V, 250mA.
    • 1 Optional&Definable Analog Signal Output [AO]: 4~20mA, Non-linearity: 0.05%FS.

    • Digital Communication Interface
    • COM1: RS232.
    • COM2: RS485.
    • Connectable: Host IPC/PLC and LED Remote Display.
    • Operating Specification
    • Operating Voltage
    • Model Panel-mounting: DC24V±20%.
    • Model Explosion-proof: AC110~240V, 50/60Hz.
    • Max. Power Consumption: 5W.
    • Outline Size
    • Model Panel-mounting: 110×62×150mm [W×H×D].
    • Model Explosion-proof: 256×290×166mm [W×H×D].
    • Panel Cut-out Size
    • Model Panel-mounting: 94×47 mm [W×H].
    • Operating Temperature: -25℃ to +45℃.
    • Storage Temperature: -30℃ to +60℃.
    • Relative Humidity: Max. 85%RH.
    • Application Environment of Model Explosion-proof
    • Explosion gas environment: Zone 1&2.
    • Classes of explosion gas mixture: IIA, IIB.
    • Temperature grades of explosion gas mixture: T1~T6.
    • Ex-mark: Ex d IIB T6 Gb.
    • Protection Level
    • Front Panel of Model Panel-mounting: IP65.
    • Model Explosion-proof: IP65.
    • Weight
    • Model Panel-mounting: Approx. 0.5kg.
    • Model Explosion-proof: Approx. 9.2kg.

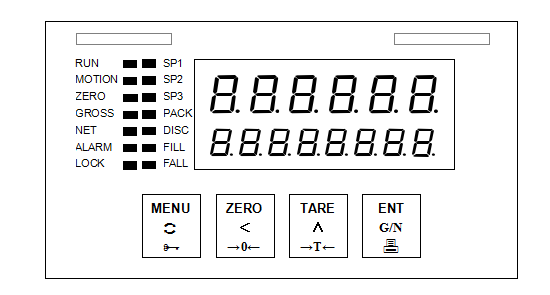

    Model Panel-mounting Operation Interface

    Keypad Operation


    If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.

    Menu Operation
    Key NameDescription
    【MENU】

    Enter Main Menu.

    Exit.

    【ENT】Enter / Save / Alarm Acknowledge.
    【◄】

    Cursor shifts left.

    Display the previous option.

    【►】

    Cursor shifts left.

    Display the next option.

    【▲】

    Display the next interface or option.

    Digit input: +1 ( 0~9 loop).

    【▼】

    Display the previous interface or option.

    Digit input: -1 ( 0~9 loop).

    Quick Operation

    【MENU】

    【Ñ】

    *

    • Key-locking.
    • Key-unlocking.

    【◄】

    (【SET】)

    Recipe parameters setting.

    【◄】

    【ZERO】

    【→0←】

    *

    • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
    • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
    • The controller will switch to Gross Weight display.

    【▲】

    【TARE】

    【→T←】

    *

    • [≡tArE≡]: Manual Tare without Power-down Protection.
    • [-PStr-]: Preset Tare Weight with Power-down Protection.
    • [-rStr-]: Clear Tare Weight with Power-down Protection.
    • The controller will switch to Net Weight display.

    【ENT】

    【G/N】

    Gross Weight / Net Weight display switch.

    *: Keep the key pressed for 2 seconds.

    DI/DO Function Definition

    CN1 [DI]
    No.PinSignal NameDescription
    1COMCOMDI Common Terminal [DC-].
    2DI1AUTO

    Auto/Manual.

    ON: Auto state.

    OFF: Manual state / Emergency Stop.

    3DI2START

    Start/Dev.Ack [Deviation Alarm Acknowledge]

    In running process: Dev.Ack.

    Pause state: Dev.Ack & Recover Running.

    OFF→ON→OFF.

    4DI3BAG_I

    Bag-clamp/release Request.

    OFF→ON→OFF.

    Slave Controller of Double-hopper-weighing Mode: Unused.
    5DI4DUMP_I

    Hopper-weighing Mode: Manual Dump.

    Valid at Manual state.

    ON: Manual Dump; OFF: Stop.

    Bag-weighing Mode: Unused.
    6DI5TARE

    Single-hopper-weighing Mode: Manual Tare.

    Bag-weighing Mode: Manual Tare.

    OFF→ON→OFF.

    HDSK_IHost Controller of Double-hopper-weighing Mode: Handshaking Signal from Slave Controller.
    Slave Controller of Double-hopper-weighing Mode: Unused.
    7DI6SP3_I

    Manual SP3 Re-feed.

    Valid at Manual state and Auto-pause state with Negative Deviation Alarm.

    ON: Start SP3 Low-speed Feeding.

    OFF: Stop SP3 Low-speed Feeding.

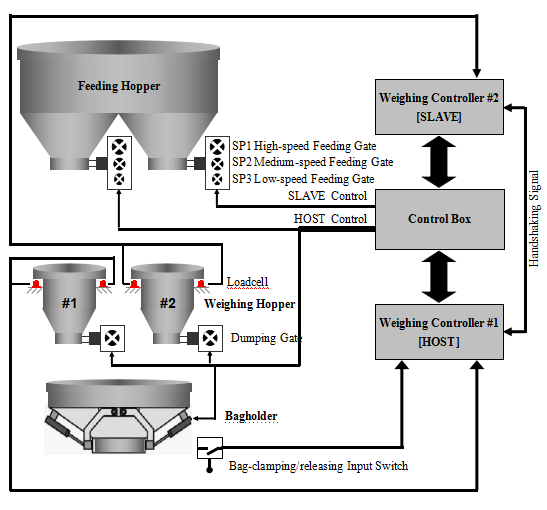

    System Diagram for APP1.2 Double-hopper-weighing Mode
