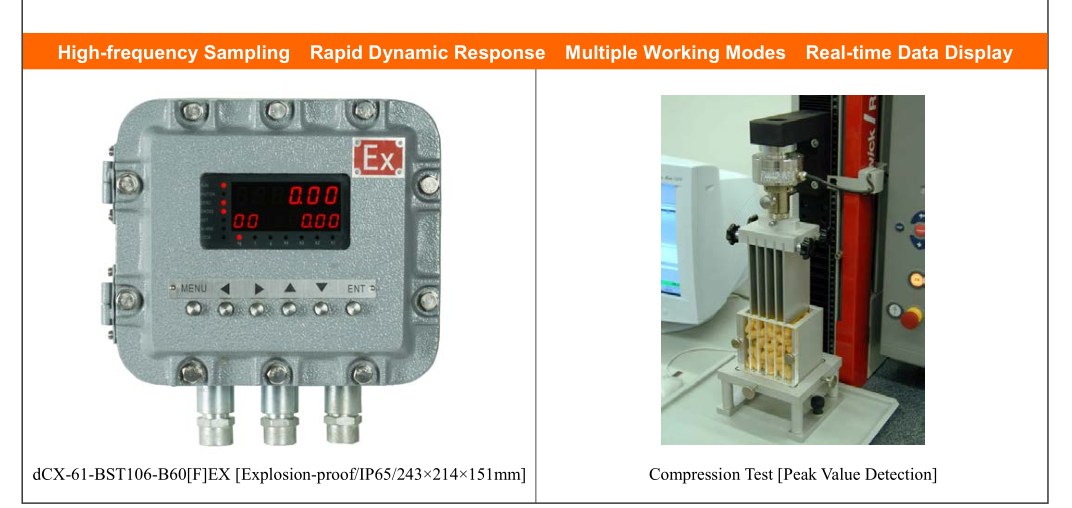

    Explosion Proof Electronic Weight Indicator , Force Measurement Indicator DO Alarm Output

    Ask Lasest Price
    Brand Name : SUPMETER
    Model Number : BST106-B60[F]EX
    Certification : CE
    Price : 600USD PER UNIT
    Payment Terms : T/T
    Supply Ability : 1000 UNIT PER MONTH
    Delivery Time : 5 WORKING DAYS
    • Product Details
    • Company Profile

    Explosion Proof Electronic Weight Indicator , Force Measurement Indicator DO Alarm Output

    Explosion proof Force Measuring Controller Power:DC24V Commnication Port :RS232 AO[4-20mA]


    Main Applications

    •  Positive&Negative Direction Real-time Force Value Display.
    •  Peak Value Detection / Display Holding.
    •  DO Alarm Output.
    •  Force Signal AO/Digit Transmission.
    •  Positive/Negative/Double Direction Modes.
    •  Threshold / DI Pulse / DI Switch / DI Jump Start&Stop Modes
    • Technical Specification
    1Power Supply: DC24V±20%, Max. 5W.
    2Loadcell Excitation Voltage/Current: DC9V/120mA.
    34 Loadcells[350Ω] connectable.
    4Force Signal Input Range: 0~22.5mV.
    56 Normally Open Switch Inputs [DI].
    65 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
    71 Analog Signal Output [AO]: 4~20mA, 0.05%FS.
    8COM1: RS232.
    9COM2: RS485.
    10Connect Host IPC[Modbus] & Remote Display.
    11Outline Size [W×H×D]: 110 × 62 × 150 mm.
    12Panel Cut-out Size [W×H]: 94 × 47 mm.
    13Operating Temperature: -25℃~+45℃
    14Protection Level of Front Panel: IP65.
    15Accuracy Grade: III.
    16Verification Accuracy: 0.03%.
    17Static Force Measuring Accuracy: 0.2%~0.5%.

    Main Specification:

    • EMC design with high anti-jam for industrial environment.
    •  DC24V power input with reverse polarity protection.
    •  32-bit ARM CPU with 48MHz clock & high arithmetic speed.
    •  6+8 Red LED digital tubes for English&digit display.
    •  24-bit ∑-△ADC with internal resolution 1/1,000,000.
    •  High sampling frequency 3200Hz.
    •  Optional Special Anti-vibration Digital Filtering Algorithm for precise force measuring, stable display and rapid response
    •  Auto Zero Tracking.
    •  Load Calibration, Data Calibration & Segmenting Correction.
    •  Definable AO/COM[Communication Port].


    Optional:

    1 definable AO(4-20mA)


    • Operating Specification
    • Operating Voltage
    • Model Panel-mounting: DC24V±20%.
    • Model Explosion-proof: AC110~240V, 50/60Hz.
    • Max. Power Consumption: 5W.
    • Outline Size
    • Model Panel-mounting: 110×62×150mm [W×H×D].
    • Model Explosion-proof: 256×290×166mm [W×H×D].
    • Panel Cut-out Size
    • Model Panel-mounting: 94×47 mm [W×H].
    • Operating Temperature: -25℃ to +45℃.
    • Storage Temperature: -30℃ to +60℃.
    • Relative Humidity: Max. 85%RH.
    • Application Environment of Model Explosion-proof
    • Explosion gas environment: Zone 1&2.
    • Classes of explosion gas mixture: IIA, IIB.
    • Temperature grades of explosion gas mixture: T1~T6.
    • Ex-mark: Ex d IIB T6 Gb.
    • Protection Level
    • Front Panel of Model Panel-mounting: IP65.
    • Model Explosion-proof: IP65.
    • Weight
    • Model Panel-mounting: Approx. 0.5kg.
    • Model Explosion-proof: Approx. 9.2kg.
