Dust proof Electronic Measure Belt Weighfeeder Controller With Signal Junction Box

Technical Specification

• Executing Standard

• CMC GB/T 7724-2008PRC National Standard.

² OMIL R50:1997International Recommendation.

² Accuracy Grade: 0.5.

² Accuracy of Flow Control: 0.5%~1.0%.

• Display

• 8+4+4 Red LED digital tubes for English character and digit display.
• Display Refreshing Time: Setting Range 0.1~2.0s.

• Kaypad

• Optional 6-key English keypad, Simplified Chinese keypad and Complex Chinese keypad.
• Menu&Shortcut operation with key tone.

• Loadcell Interface

• Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
• Signal Input Range: 0~25mV.
• 24-bit ∑-△ADC with internal resolution 1/1,000,000.
• Sampling Frequency: 400Hz.
• Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
• Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
• Gain Drift: ±5ppm/℃.
• Non-linearity: 0.005%FS.

• Speed Sensor Interface

• Output Voltage/Max. Current: DC12V/100mA.
• Speed Pulse Input Range: 0.5~3000Hz.

• Switch Signal Interface

• 3 Normally Open Switch Inputs [DI].
• 4 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
• 1 ‘Totalized Weight High-speed Pulse’ Output [PO]: 100mA, DC5~24V; Weight per Pulse and Pulse Width can be preset.

• Analog Signal Interface

• Max.3 Definable ‘Flow/Control Current /…’ Analog Signal Outputs [AO]: 4~20mA, Non-linearity: 0.05%FS; AO3 is optional.
• 1 Optional ‘Flow Setpoint’ Analog Signal Input [AI]: 4~20mA, Non-linearity: 0.05%FS.

•
  Digital Communication Interface

• COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
• COM2: RS232.
• Connectable: IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.

• Report Print

• Weight Records per shift/day/month of a year can be queried and printed.

• Operating Specification

• Operating Voltage: AC220V±15%, 50/60Hz.
• Max. Power Consumption: 15W.
• Outline Size

• Model Panel-mounting: 160×84×188mm [W×H×D].

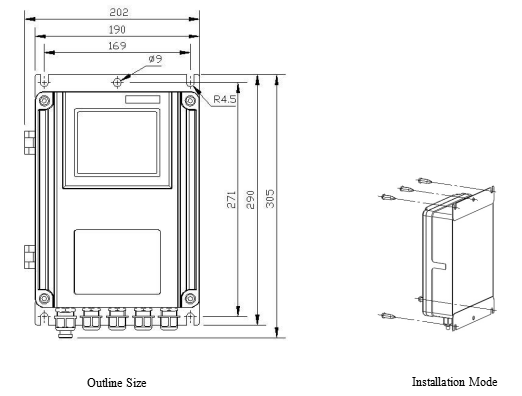

• Model Wall-mounting: 202×305×90mm [W×H×D].

• Panel Cut-out Size

• Model Panel-mounting: 151×76mm [W×H].

• Operating Temperature: -25℃ to +45℃.
• Storage Temperature: -30℃ to +60℃.
• Relative Humidity: Max. 85%RH.
• Protection Level

• Front Panel of Model Panel-mounting: IP65.
• Model Wall-mounting: IP65.

• Weight

• Model Panel-mounting: Approx. 1.5kg.
• Model Wall-mounting: Approx. 3.4kg.

Model Panel-mounting / Wall-mounting Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.

*: Keep the key pressed for 2 seconds.

Model Panel-mounting Installation

Model Panel-mounting Terminal

Ration Flow Auto-Feeding System:

Changsha SUPMETER Technological Co., Ltd., as a council member of China Weighing Instrument Association (CWIA), is a high-tech enterprise which specializes in designing and manufacturing weighing/batching controller, force measuring controller, explosion-proof controller and related system software.

Since founded in 2004, SUPMETER is persisting in doing the same thing of ‘customizing satisfied products for you and building win-win cooperation with you’ and insisting on the core idea of ‘Being Super in Meter and Being Perfect in Service’. On the quality basic of ‘Accurate Weighing, Quick and Steady Control, Standard Communication Bus and Protocol, Suitable for Industrial Environment’, SUPMETER is doing the best to meet your individual requirements and to reach the enterprise goal of ‘Outstanding Quality, Continuous Improvement, Effective Service and Customer Satisfaction’.

The products of SUPMETER have been sold to over 1000 weighing equipment manufacturers from China, Germany, USA, Canada, Australia, Russia, Ukraine, Uzbekistan, Turkey, Pakistan, India, Thailand, Vietnam, Philippines, Malaysia, Indonesia, Singapore, Sri Lanka, South Africa, Nigeria, Zimbabwe, Iran, Saudi Arabia, Jordan, United Arab Emirates, Oman, Palestine, Mexico, Brazil, Argentina, Venezuela, Honduras, Bolivia, Chile, Peru and other countries and regions. And we have built long-time relationship of technical exchange and co-development with many famous enterprises. By tracking and applying international advanced technology and combining with all kinds of typical applications from the worldwide customers, SUPMETER has developed multiple high-quality products for customers and became a famous enterprise and brand in weighing, batching and force measuring field.

We will do our best to make our development more high-efficiency, quality more superior, service more enthusiastic and price more reasonable. SUPMETER, as your faithful team of product-development and technical service, is one of your best choices.

Executing Standard & Product Certification:

• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• OMIL R76: 2006《Non-automatic Weighing Instruments》International Recommendation.
• OMIL R50: 1997《Continuous Totalizing Automatic Weighing Instruments》.
• PRC Approval Certificate No. PA2006F108-43, PA2014F108-43.
• CE Certification No. CPC16/042377, CPC16/042376.
