    High Performance Weighing Indicator Controller With Ration Flow Feeding

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST100-E81
    Certification : CE
    Price : negotiation
    Payment Terms : Western Union, T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3workdays
    • Product Details
    • Company Profile

    High Performance Weighing Indicator Controller With Ration Flow Feeding

    Electronic Measure Controller For Ration Belt Weighfeeder With Ration Flow Feeding


    Technical Specification

    Power SupplyAC220V±15%
    Display

    LCD display screen with 7 background colors;

    4+4 Red Led Digital Tubes for Digit Display

    Sampling Frequency400Hz
    A/D Convert24-bit
    Keypad8 keys for Menu&Shortcut mode operation with key tone
    Excitation Voltage Output of LoadcellDC10V
    Max. Connection number of Loadcell8 Loadcells (350Ω)
    DI3 Normally Open Switch Inputs
    DO4 Normally Open Transistor Switch Outputs
    AO2'PID Control' Analog Output: 4~20mA.
    Communication PortCOM1:Optianal RS232/RS485/RS422/Profibus-DP/Ethernet; COM2:RS232
    Outline Dimension170 × 100 × 193 mm (W×H×D)
    Net WeightApprox. 2kg
    IP GradeIP65
    Accuracy of Flow Control0.5%~1.0%
    Operatiing Temperature-25℃~+45℃

    Model Panel-mounting / Wall-mounting Keypad Operation

    If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.


    Menu Operation
    Key NameDescription

    【MENU】

    (【ESC】)

    Enter Main Menu.

    Exit.

    【ENT】Enter/Save.
    【▲】

    Cursor shifts up or left.

    Display the previous interface or option.

    【▼】

    Cursor shifts down or right.

    Display the next interface or option.

    【0~9】Digit Input.
    Quick Operation
    【LOCK】
    • Key-locking.
    • Key-unlocking.
    【F1】Return to the initial display interface.
    【SET】Flow Set Value Setting.
    【ADJ-】Control Current -1mA.
    【ADJ+】Control Current +1mA.
    【AUTO】‘Manual/Auto’ Control Mode Selection.
    【EXT】‘Internal/External’ Flow Set Mode Selection.
    【ZERO】Zero Calibration.
    【CAL】Dynamic Span Calibration.
    【CLS】Clear Screen: Clear display value of Totalized Weight.
    【REC】Query and print Weight Record.
    【PRINT】Print.

    Electronic Measure Controller For Ration Belt Weighfeeder With Ration Flow Feeding


    Installation:

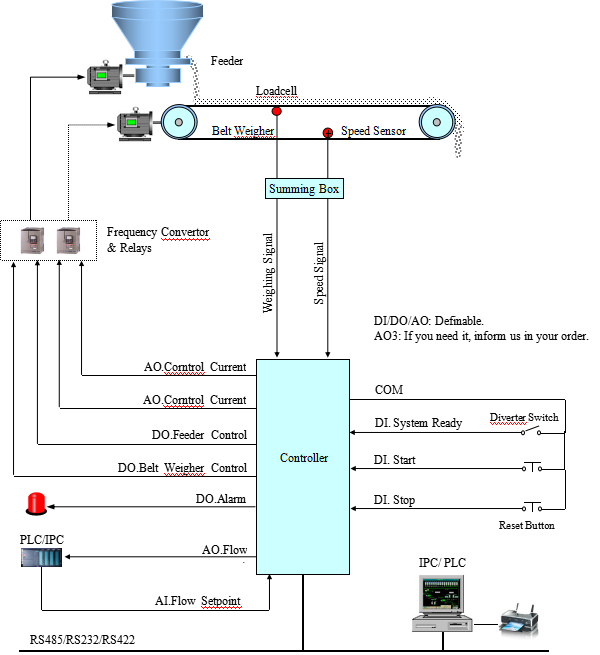

    Ration Flow Auto-Feeding System:
