TFT Touch Display Filling Controller Auto Zero Tracking With Load Cell

Main Features:

• EMC design with high anti-jam for industrial environment.
• DC24V power input with reverse polarity protection.
• Cortex-A8 CPU with 600MHz Clock, 128M Flash.
• 7” [800×480] or 10.2” [1024×600] TFT touch panel.
• 24-bit ∑-△ADC with internal resolution 1/1,000,000.
• High sampling frequency 800Hz.
• Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
• Auto Zero Tracking.
• Fall Value Auto Correction.
• Auto Pause for Deviation Alarm.
• Auto Re-feed for Negative Deviation Alarm.
• Target Batch Count & Target Batch Weight Control.
• 3-speed[high/medium/low] feeding control by DOs or AOs.
• Definable DI/DO/AO/COM[Communication Port].
• Recipe Number: 100.

Technical Specification:

Main Operation Interface

Button Operation

Data Display & Quick Setting

TFT-Touch Raiton Filling Controller For Filling Liquid, Gas & Powder Materials

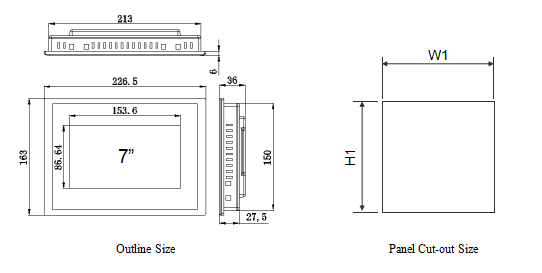

Outline Size

Installation Mode

Terminal Diagram

System Diagram:

Changsha SUPMETER Technological Co., Ltd., as a council member of China Weighing Instrument Association (CWIA), is a high-tech enterprise which specializes in designing and manufacturing weighing/batching controller, force measuring controller, explosion-proof controller and related system software.

Since founded in 2004, SUPMETER is persisting in doing the same thing of ‘customizing satisfied products for you and building win-win cooperation with you’ and insisting on the core idea of ‘Being Super in Meter and Being Perfect in Service’. On the quality basic of ‘Accurate Weighing, Quick and Steady Control, Standard Communication Bus and Protocol, Suitable for Industrial Environment’, SUPMETER is doing the best to meet your individual requirements and to reach the enterprise goal of ‘Outstanding Quality, Continuous Improvement, Effective Service and Customer Satisfaction’.

The products of SUPMETER have been sold to over 1000 weighing equipment manufacturers from China, Germany, USA, Canada, Australia, Russia, Ukraine, Uzbekistan, Turkey, Pakistan, India, Thailand, Vietnam, Philippines, Malaysia, Indonesia, Singapore, Sri Lanka, South Africa, Nigeria, Zimbabwe, Iran, Saudi Arabia, Jordan, United Arab Emirates, Oman, Palestine, Mexico, Brazil, Argentina, Venezuela, Honduras, Bolivia, Chile, Peru and other countries and regions. And we have built long-time relationship of technical exchange and co-development with many famous enterprises. By tracking and applying international advanced technology and combining with all kinds of typical applications from the worldwide customers, SUPMETER has developed multiple high-quality products for customers and became a famous enterprise and brand in weighing, batching and force measuring field.

We will do our best to make our development more high-efficiency, quality more superior, service more enthusiastic and price more reasonable. SUPMETER, as your faithful team of product-development and technical service, is one of your best choices.

Executing Standard & Product Certification:

• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• GB/T 7724-2008《Electronic Weighing Meter》PRC National Standard.
• OMIL R76: 2006《Non-automatic Weighing Instruments》International Recommendation.
• OMIL R50: 1997《Continuous Totalizing Automatic Weighing Instruments》.
• PRC Approval Certificate No. PA2006F108-43, PA2014F108-43.
• CE Certification No. CPC16/042377, CPC16/042376.
