Dust Proof Shovel Loader Indicator Scales With 640×480 TFT Color Display Screen

Suitable for the wheel loader series with loading capacity 1~12t.

Main Features:

• EMC design with high anti-jamming capability, suitable for industrial environment.
• DC24V power input circuit with reverse polarity protection function.
• 32-bit ARM CPU with 72MHz & higher arithmetic speed.
• Dust-proof stainless steel shell with protection level IP65.
• 640×480 TFT color display screen for English character display.
• The display informations of Bucket Lifting/Declining state, Single-bucket-loading-weight, Totalized Loading Weight, Positive/Negative Deviation Value, Alarm state, Date/Time and other auxiliary data are used for judging if Single-bucket-loading-weight is valid and the loading process should be stopped.
• 20-key English keypad with controllable backlight.
• Number and English Alphabet can be inputted.
• The informations of User Name, Truck No., Goods No. and Operator No. can be inputted.
• Upper/Lower Limit of Single-bucket-loading-weight, Setpoint of Totalized Loading Weight and Date/Time can be set.
• Operating Time, Single-bucket-loading-weight, Totalized Loading Weight and Alarm Information can be recorded automatically.
• Using two oil pressure sensors for higher weighing accuracy than using one.
• 24-bit ∑-△ADC with internal resolution 1/1,000,000 and sampling frequency 400Hz.
• High sampling frequency, anti-vibration digital filter and acceleration compensation algorithm for ensuring high weighing accuracy in the lifting process of the bucket.
• 10000 Loading Records can be saved, queried and printed, and each record can contain 50 Single-bucket-loading-weight value.

Package:

System Configuration

• 1 Weighing Indicator with Thermal Printer.
• 1 Position Sensor.
• 2 Oil Pressure Sensors.
• 2 Plate Type Three-way Joints.
• 1 Mounting Fitting.

Technical Specification:

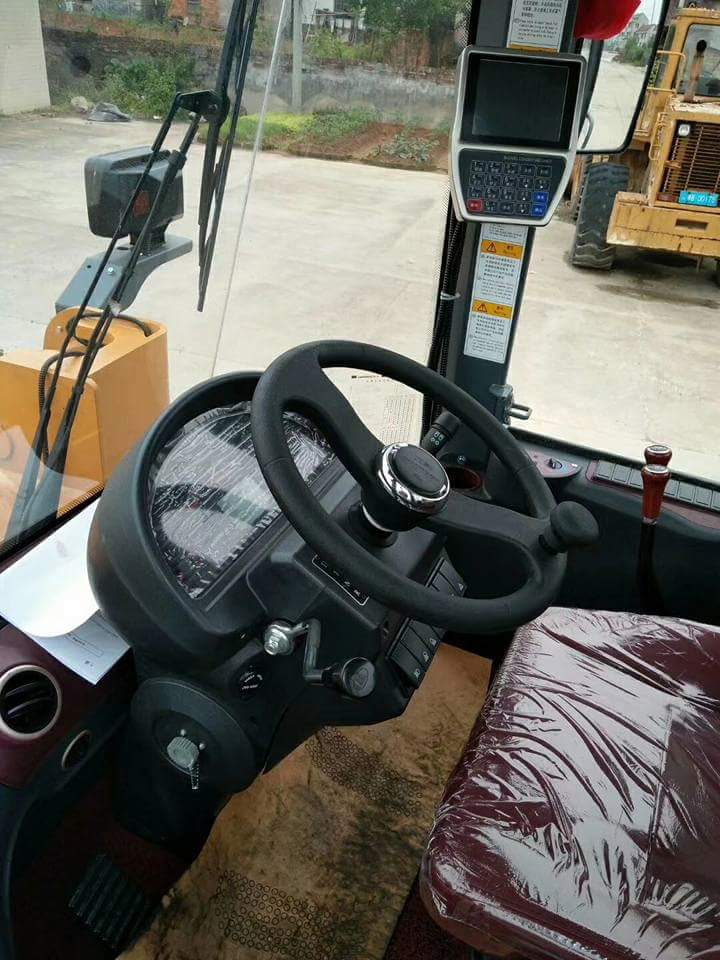

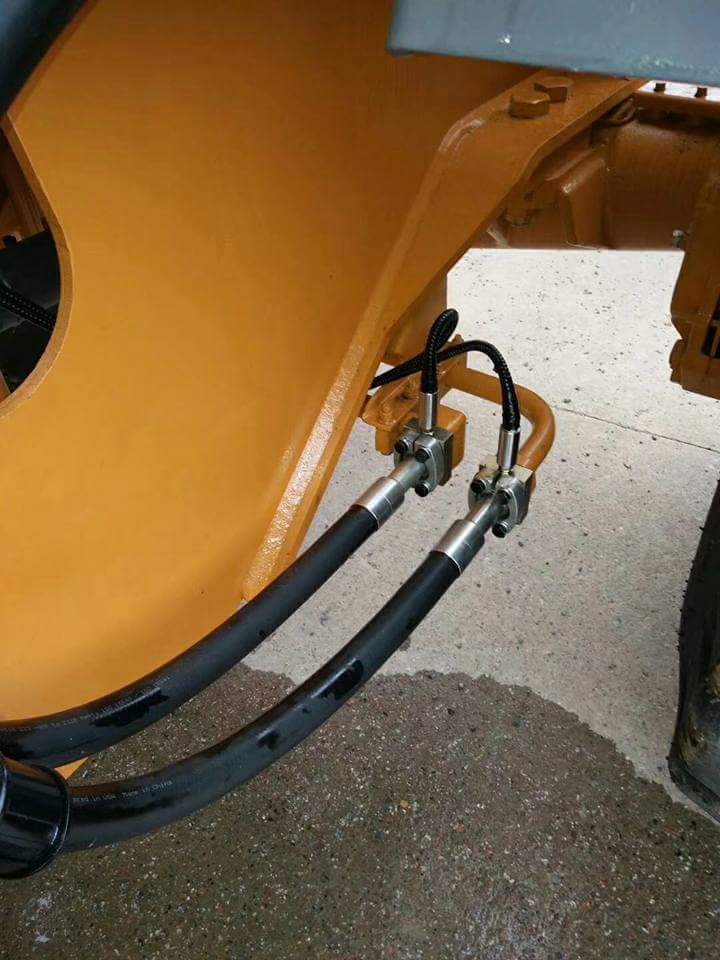

On-site Installation:

If the three-way joint on your loader scale is special, please tell us the size.
