    2 Switch Signal Input Weighing Indicator Controller For Shovel Loader

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST106-N59[B]
    Certification : CE
    Payment Terms : T/T, Western Union
    Supply Ability : 300pcs per month
    Delivery Time : 3-30 working days
    Price : Negotiation
    • Product Details
    • Company Profile

    2 Switch Signal Input Weighing Indicator Controller For Shovel Loader

    cShovel Loader/Wheel Loader Weighing Controller, With Position Sensor, Oil Pressure Sensor, Printer and Install Accessory


    Whether you have a mining, forestry, landscaping, waste or construction application, SUPMETER offer a complete range of Wheel Loader attachments.Configuration ofc 1 set:


    Controller*1
    Oil Pressure Sensor*2
    Posiion Sensor*1
    Three-way Joint*1

    Package:



    Technical Specification

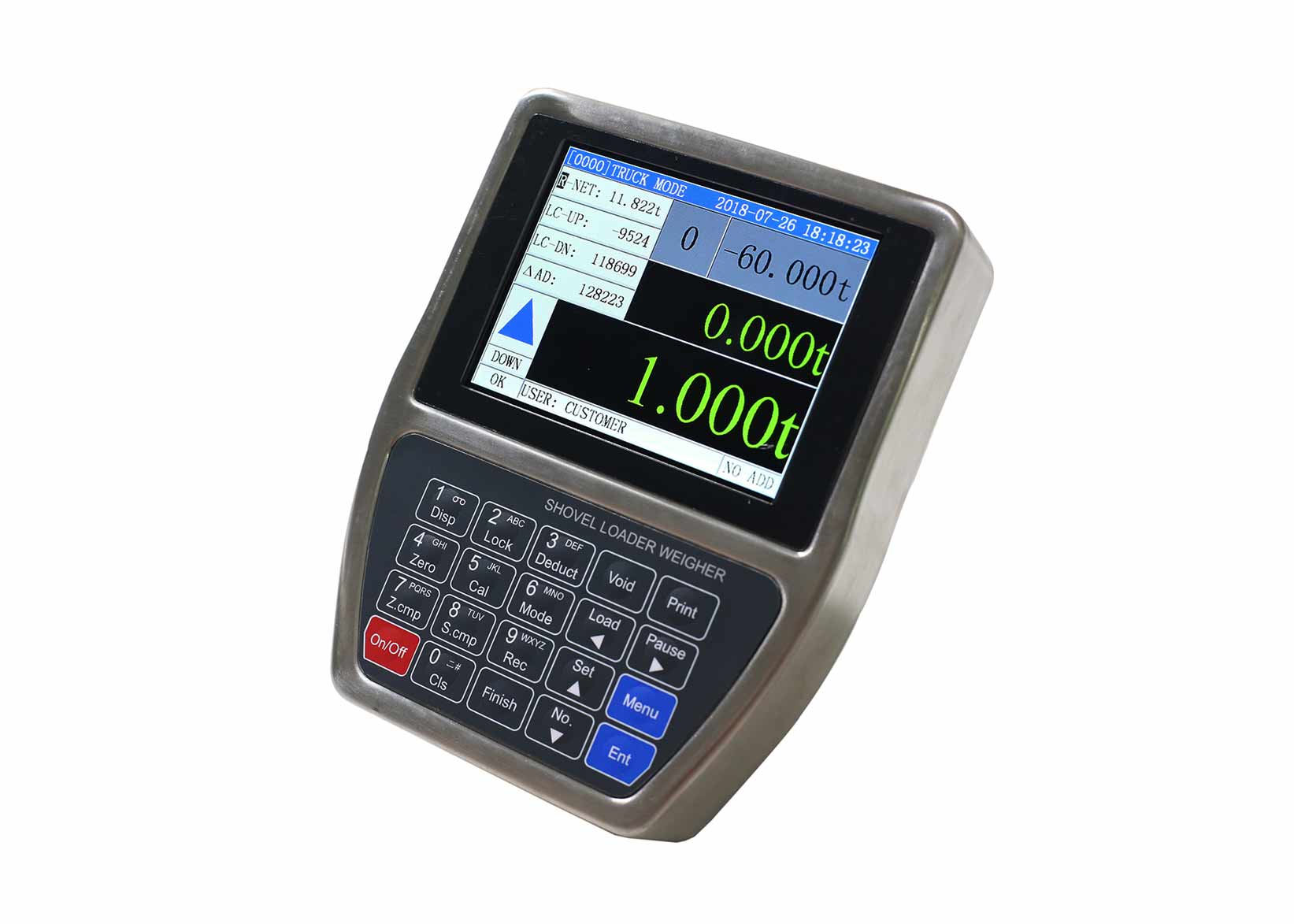

    Specifications of Weighing Indicator


    • Executing Standard
    • CMC GB/T 7724-2008PRC National Standard.
    • OMIL R76: 2006International Recommendation.
    • Display
    • 640×480 TFT color display screen for English character display.
    • Weight Display Range of Indicator: -99,999~99,999.
    • System Weighing Range: 100~12,000kg.
    • Scale Division: Optional 1, 2, 5, 10, 20, 50kg.
    • Display Resolution: 1/100,000.
    • Scale Unit: Fixed kg.
    • Weight Unit: Optional kg, t.
    • Ton Decimal Point: Optional 0, 0.0, 0.00, 0.000.
    • Display Refreshing Time: Setting Range 0.1~2.0s.
    • Keypad
    • 20-key English keypad with controllable backlight.
    • Menu&Shortcut mode operation with key tone.
    • Number and English Alphabet can be inputted.
    • Position Sensor Input Interface
    • 2 Switch signal Input.
    • Output Voltage: DC12V.
    • Max. Output Current: 100mA.
    • Oil Pressure Sensor Interface
    • Excitation Voltage/Max.Current: DC12V/100mA & DC5V/100mA.
    • 2 Oil Pressure signal inputs.
    • Signal Input Range: Optional 0~20mV, 0~5V[Factory Set Value].
    • ∑-△ADC: 24-bit, 1,000,000 internal code used.
    • Sampling Frequency: 400Hz.
    • Special anti-vibration digital filtering algorithm.
    • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
    • Gain Drift: ±5ppm/℃.
    • Non-linearity: 0.005%FS.
    • Digital Communication Interface
    • COM1: RS232.
    • Internal COM2: Optional wireless serial communication module.
    • Internal COM3: Connected Thermal Serial Printer, Baud Rate 9600bps, No Parity Check Bit.
    • Report Print
    • 10000 Loading Records can be saved, queried and printed, and each record can contain 50pcs Single-bucket-loading-weight value.
    • Operating Specification
    • Operating Voltage: DC24V±20%.
    • Max. Power Consumption: 10W.
    • Outline Size: 168×213×50mm [W×H×D].
    • Operating Temperature: -25℃ to +45℃.
    • Storage Temperature: -30℃ to +60℃.
    • Relative Humidity: Max. 85%RH.
    • Protection Level: IP65.
    • Weight: Approx. 2.0kg.

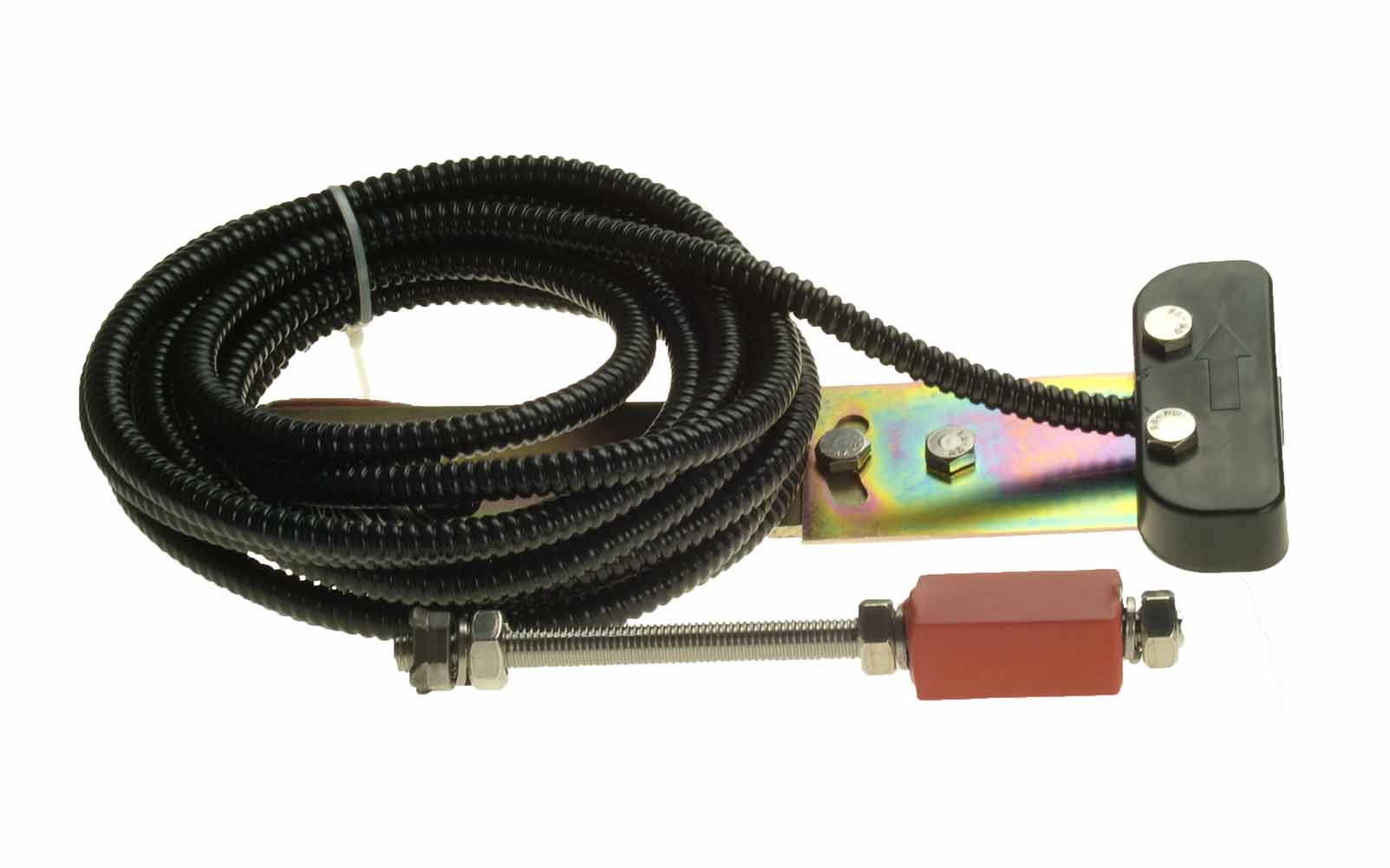

    Specifications of Position Sensor


    • HALL Type Proximity Switches
    • Operating Voltage: DC5~24V.
    • Detecting Distance: 1~8mm.
    • Response Frequency: 5KHz.
    • Quiescent Current:Max. 2mA.
    • Thread Size: M8×1mm.
    • Service Temperature: -25℃~+70℃.
    • Protection Level: IP67.
    • Standard Detecting Target
    • Permanent magnet.
    • Outline Size: 30×10×5mm [L×W×T].

    Specifications of Oil Pressure Sensor


    • Operating Voltage: DC5V.
    • Capacity: 0~25MPa.
    • Accuracy: ±0.1%FS.
    • Output Sensitivity: 2mV/V.
    • Zero Drift: ±0.015%FS/℃.
    • Safe Overload: 120%FS.
    • Thread Size: M10×1mm.
    • Service Temperature: -40℃~+125℃.
    • Protection Level: IP67.
