    Anti Explosion Belt Scale Controller With Weight & Ration Flow Feeding

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST100-A21EX
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 300pcs per month
    Delivery Time : 1-20 working days
    • Product Details
    • Company Profile

    Anti Explosion Belt Scale Controller With Weight & Ration Flow Feeding

    Explosion-proof Belt Scale Controller With Weight & Ration Flow Feeding


    Main Features:

    • Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
    • EMC design with high anti-jamming capability, suitable for industrial environment.
    • 32-bit ARM CPU with 72MHz & higher arithmetic speed.
    • 128×64 LCD display screen with 7 background colors for English display.
    • 4+4 Red LED digital tubes for digit display [Model Panel-mounting].
    • 6-key English keypad.
    • Menu&Shortcut mode operation with key tone.
    • High-precision ∑-△A/D conversion technology and broad-range speed pulse input circuit.
    • Max. Connection Quantity: 8 Loadcells (350Ω).
    • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
    • Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
    • 1 Optional ‘Flow Setpoint’ analog signal input [AI: 4~20mA].
    • Max.3 definable ‘Flow/Control Current /…’ analog signal outputs [AO: 4~20mA].
    • Quick and steady PID ration feeding control.
    • 3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch outputs [DO].
    • The feeder and belt weigher can be started and stopped by DI&DO signal.
    • 1 ‘Totalized Weight High-speed Pulse’ output [PO].
    • 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
    • Weight Records per shift/day/month of a year can be queried and printed.
    • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

    Keypad Operation

    If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.


    Menu Operation
    Key NameDescription

    【MENU】

    【ESC】

    Enter Main Menu.

    Exit.

    【ENT】

    Enter.

    Save.

    【◄】Cursor shifts left.
    【►】Cursor shifts right.
    【▲】

    Cursor shifts up.

    Display the previous interface or option.

    Digit input: +1.

    【▼】

    Cursor shifts down.

    Display the next interface or option.

    Digit input: -1.

    Quick Operation

    【MENU】*

    (【LOCK】)

    • Key-locking.
    • Key-unlocking.

    【◄】

    (【ADJ+】)

    Control Current +1mA.

    【►】

    (【ADJ-】)

    Control Current -1mA.

    【◄】*

    (【AUTO】)

    ‘Manual/Auto’ Control Mode Selection.

    【►】*

    (【EXT】)

    ‘Internal/External’ Flow Set Mode Selection.

    【PRINT】

    (【ENT】)

    Print.

    State Indication

    LED LampDescription
    [RUN]

    ON: Weighing state.

    OFF: Stopping state.

    [AUTO]

    Feeding control mode:

    ON: Auto [PID].

    OFF: Manual.

    [EXT]

    Flow Set Mode:

    ON: External [AI: 4~20mA].

    OFF: Internal.

    [ALARM]Alarm.
    [PV]

    LED1 displays the real-time value of Flow or Load.

    Setable via the parameter [P902] ‘LED1 Data’.

    [SV]

    LED2 displays the set value of Flow Setpoint or Load Setpoint.

    Setable via the parameter [P903] ‘LED2 Data’.

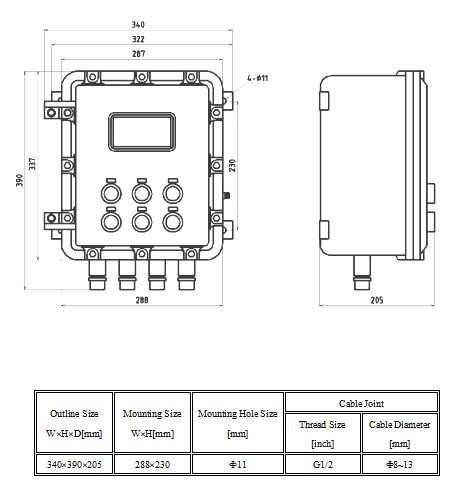

    Model Explosion-proof Installation

    Ration Flow Auto-Feeding System
