    Dust Proof RS232 RS485 Corrosion Resistance Belt Scale Controller With Optional Enthernet and DP And LCD

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST100-D52
    Certification : CE
    Supply Ability : 100pcs/month
    Delivery Time : 3-30 working days
    • Product Details
    • Company Profile

    Dust Proof RS232 RS485 Corrosion Resistance Belt Scale Controller With Optional Enthernet and DP And LCD

    Corrosion-proof LCD Belt Scale Controller For Belt Weigher With Weight Totalizing


    BST100-D52 is widely used on belt weigher, with the function of weighing.


    Main Applications

    • Belt Weigher with Weight Totalizing.
    • Suitable for corrosive gas environment.

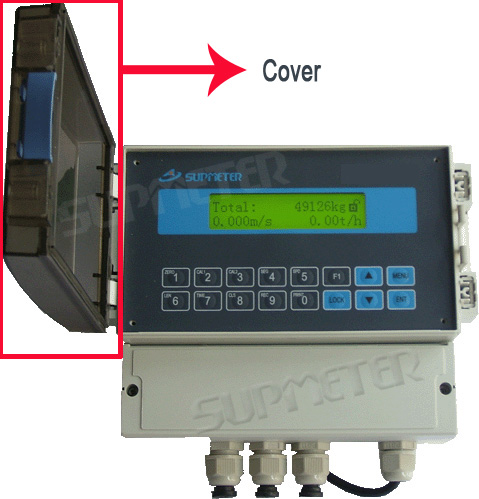

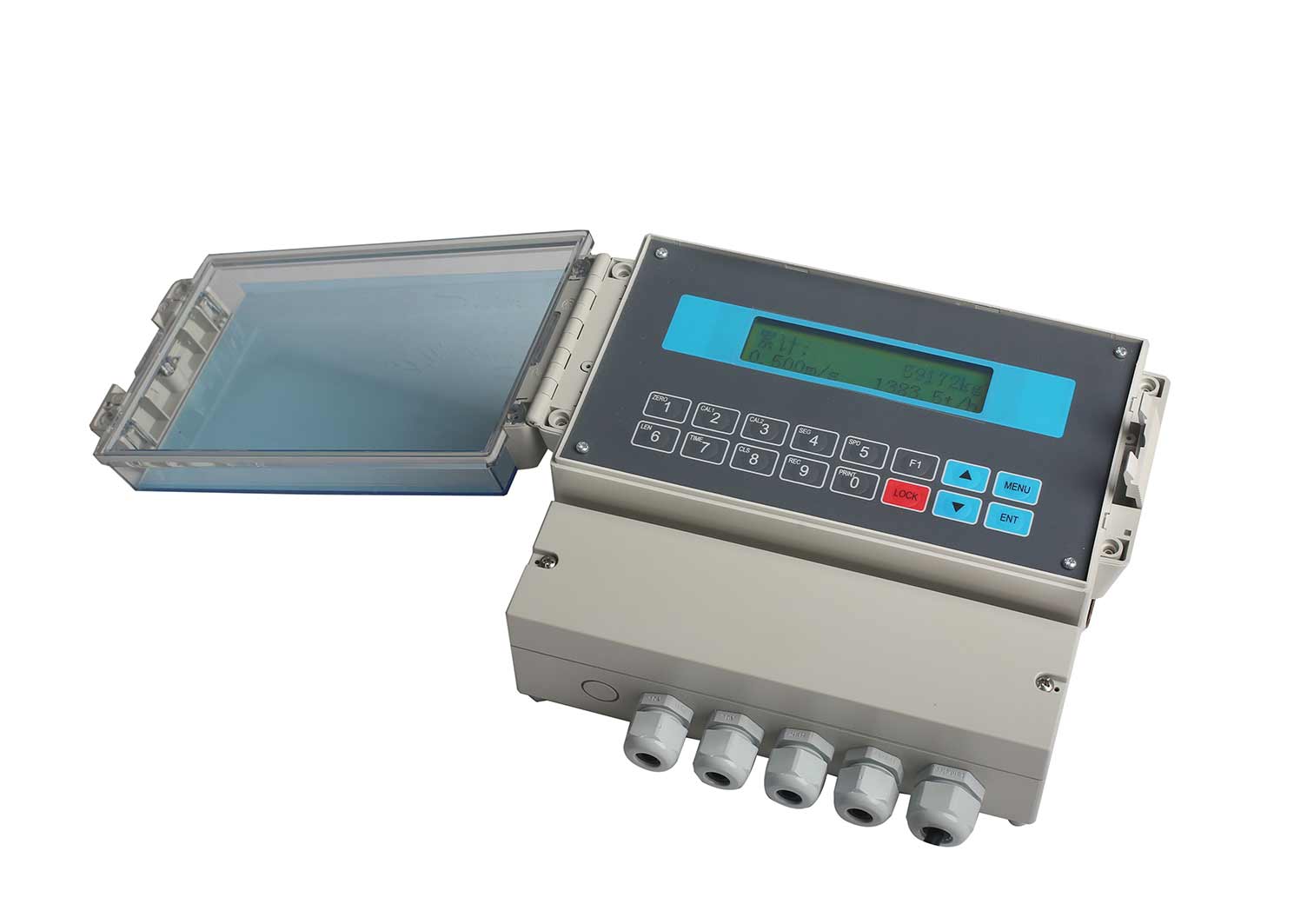

    Pictures



    Main Features

    • EMC design with high anti-jam for industrial environment.
    • 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
    • 160×32 LCD display screen with yellow-green background.
    • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
    • High sampling frequency 400Hz.
    • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
    • External Speed’ or ‘Inner Speed’ working modes.
    • Zero Calibration & Auto Zero Tracking.
    • Span Calibration & Segmenting Correction.
    • Speed Calibration & Belt Length Calibration.
    • Queryable Records per shift/day/month of a year.
    • Definable COM[Communication Port].

    Technical Specifications:


    Display
    160×32 dots LCD display screen with yellow-green background for English display.
    Display Refreshing TimeSetting Range 0.1~2.0s
    Kaypad
    16-key English keypad
    Loadcell Interface
    Excitation Voltage/Max. CurrentDC10V/250mA [8-350Ω loadcells]
    Signal Input Range0~25mV
    Sampling Frequency400Hz
    Speed Sensor Interface
    Output Voltage/Max. CurrentDC12V/100mA
    Speed Pulse Input Range0.5~3000Hz
    Analog Signal InterfaceCOM1 (For additional option. Please tell us when making order if you need it)
    Digital Communication Interface
    COM2RS232
    ConnectableIPC/PLC, LED Remote Display, Serial Printer and Wireless Module

    • Technical Specifications
    •  Power Supply: AC220V±15%, 50/60Hz, Max. 10W.
    •  Loadcell Excitation Voltage/Current: DC10V/250mA.
    •  8 Loadcells[350Ω] connectable.
    •  Weighing Signal Input Range: 0~25mV.
    •  Speed Sensor Excitation Voltage/Current: DC12V/100mA.
    •  Speed Signal Input Range: 0.5~3000Hz.
    •  COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
    •  COM2: RS232.
    •  Connect Host IPC, Remote Display, Printer&Wireless Module.
    •  Optional 4~20mA Analog Output [AO] Module by COM1.
    •  Outline Size [W×H×D]: 235.5 × 227.5 × 119.5 mm.
    •  Operating Temperature: -25℃~+45℃.
    •  Protection Level: IP65.
    •  Accuracy Grade: 0.5.
    • Broad-range speed pulse input circuit.
       Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
       Max. Connection Quantity: 8 Loadcells (350Ω).
       Auto-locking, Key-locking, Key-unlocking and Digital Setting&Calibration functions available.
       Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
       Optional AO [4~20mA] module for Flow signal output (COM1 port will be occupied).
       2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
       Corrosion-proof, water-proof, dust-proof and shock-proof shell for model wall-mounting.
       Weight Records per shift/day/month of a year can be queried and printed.
       With the multitasking mode, the weighing process will not be interrupted by parameter setting and the other operations.
