    Single Hopper Weighing Scale VFD Digital Indicator For Packing Machine


    Single Hopper Weighing Scale VFD Digital Indicator For Packing Machine

    Main Application:
    H16[A]: Single-weighing-hopper/bag Ration Packing Scale
    H16[D]: Loss-in-weighing Ration Packing Scale

    Main Features:
    1:32-bit ARM CPU with 72MHz clock and high arithmetic speed.
    2: Auto Zero Tracking
    3: Fall Value Auto Correction
    4: Target Batch Count & Target Batch Weight Control
    5: Auto Pause for Deviation Alarm
    6: Auto Re-feed for Negative Deviation Alarm
    7: 3-speed[high/medium/low]feeding control by DOs or AOs
    8: Definable AO/COM[Communication Port]

    Technical Specifications:
    1.Executing Standard

    • CMC GB/T 7724-2008PRC National Standard.
    • OMIL R76: 2006International Recommendation.
    • Accuracy Grade: III.
    • Verification Accuracy: 0.02%.
    • Static Weighing Accuracy: 0.2%~0.5%.
    • Packing Accuracy: 0.2%~0.5%.

    2.Display

    • 6+10 Green VFD digital tubes for English character and digit display.
    • Weight Display Range: -99,999~+999,999.
    • Scale Capacity: Setting Range 1~999,999.
    • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
    • Display Resolution: 1/100,000.
    • Weight Unit: Optional kg, t, g, none.
    • Decimal Point: Optional 0, 0.0, 0.00, 0.000, 0.0000.
    • Display Refreshing Time: Setting Range 0.01~1.00s..

    3.Kaypad

    • 8-key English keypad.
    • Menu&Shortcut mode operation with key tone.

    4.Loadcell Interface

    • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
    • Signal Input Range: 0~25mV.
    • Output Sensitivity of Loadcell: 1.0~2.5mV/V.
    • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
    • Sampling Frequency: 400Hz.
    • Special anti-vibration digital filtering algorithm.
    • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
    • Gain Drift: ±5ppm/℃.
    • Non-linearity: 0.005%FS.

    5.Switch/Analog Signal Interface

    • 7 Normally Open Switch Inputs [DI].
    • 12 Normally Open Transistor Switch Outputs [DO]: DC24V, 500mA.
    • 1 Optional&Definable Analog Signal Output [AO]: 4~20mA, Non-linearity: 0.05%FS.


    6.Digital Communication Interface

    • COM1: RS232.
    • COM2 Optional: RS232/RS485/RS422/Profibus-DP/Ethernet modules.
    • Connectable: Host IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.

    7.Report Print


    Optional Operating Voltage

    • Operating Voltage 1: DC24V±20%.
    • Operating Voltage 2: AC85~264V, 50/60Hz.
    • Operating Voltage 3: AC220V±15%, 50/60Hz.
    • Free to configure one of them.

    Max. Power Consumption: 10W.
    Outline Size

    • Model Panel-mounting: 164×82×188mm [W×H×D].
    • Model Explosion-proof: 340×390×205mm [W×H×D].

    Panel Cut-out Size

    • Model Panel-mounting: 153×77mm [W×H].

    Operating Temperature: -25℃ to +45℃.
    Storage Temperature: -30℃ to +60℃.
    Relative Humidity: Max. 85%RH.
    Application Environment of Model Explosion-proof

    • Explosion gas environment: Zone 1&2.
    • Classes of explosion gas mixture: IIA, IIB.
    • Temperature grades of explosion gas mixture: T1~T6.
    • Ex-mark: Ex d IIB T6 Gb.

    Protection Level

    • Front Panel of Model Panel-mounting: IP65.
    • Model Explosion-proof: IP65.


    Weight

    • Model Panel-mounting: Approx. 1.6kg.
    • Model Explosion-proof: Approx. 19.2kg.

    Keypad Operation

    Key NameDescription
    【MENU】Enter Main Menu / Exit.
    【ENT】Enter / Save / Alarm Acknowledge.
    【◄】Cursor shifts left.
    【►】Cursor shifts right.
    【▲】

    Display the previous interface or option.
    Digit input: +1.

    【▼】

    Display the next interface or option.
    Digit input: -1.

    Quick Operation

    【Ñ】
    *

    • Key-locking.
    • Key-unlocking.
    【SET】Recipe parameters setting.
    【G/N】Gross Weight / Net Weight display switch.

    【→C←】
    【CAL】
    *

    Load Calibration.

    【→0←】
    【ZERO】
    *

    • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
    • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
    • The controller will switch to Gross Weight display.

    【→T←】
    【TARE】
    *

    • [≡tArE≡]: Manual Tare without Power-down Protection.
    • [-PStr-]: Preset Tare Weight with Power-down Protection.
    • [-rStr-]: Clear Tare Weight with Power-down Protection.
    • The controller will switch to Net Weight display.
    【,】*Record Query.
    【/】*Clear Screen: Clear the display value of Feeding Weight, Totalized Weight and Batch Count.
    【‡】*Time display and setting.
    【±】‘+’/‘-’ switch.
    【6】

    Main Display Interface:

    • [bAt.tAb]: Print Present Batch Record.
    • [tot.tAb]: Print Totalizing Report.
    • [SEt.tAb]: Print Present Recipe.
    • Record Query state: Print Historical Batch Record.


    Single-Weighing-Hopper Digital Scale Indicator Ration Packing Controller For Packing Machine


    Model Panel-mounting Operation Interface:

    Installation:

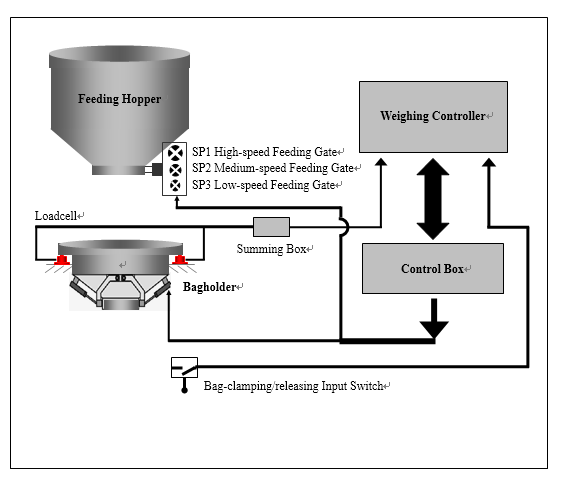

    System Diagram for APP1.1/APP1.3 Single-hopper-weighing Mode: ​
