    Mini Force Sensor Measurement Indicator

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST106-B60S[L]
    Certification : CE
    Payment Terms : T/T, Western Union
    Supply Ability : 10000pcs/month
    Delivery Time : 3work days
    Price : Negotiation
    • Product Details
    • Company Profile

    Mini Force Sensor Measurement Indicator

    Weight / Force Display Digital Scale Indicator With Red Led Digital Tubes , Mini Digital Scale Indicator


    Main Application:

    H16[A]: Single-weighing-hopper/bag Ration Packing Scale

    H16[D]: Loss-in-weighing Ration Packing Scale


    Main Features:

    1:32-bit ARM CPU with 72MHz clock and high arithmetic speed.

    2: Auto Zero Tracking

    3: Fall Value Auto Correction

    4: Target Batch Count & Target Batch Weight Control

    5: Auto Pause for Deviation Alarm

    6: Auto Re-feed for Negative Deviation Alarm

    7: 3-speed[high/medium/low]feeding control by DOs or AOs

    8: Definable AO/COM[Communication Port]


    Technical Specifications:

    Power SupplyAC24V±20%
    Display5 Red Led Digital Tubes for English&Digit Display
    Sampling Frequency1280Hz
    A/D Convert24-bit
    Keypad4 keys for Shortcut mode operation with key tone
    Excitation Voltage Output of LoadcellDC5V
    Max. Connection number of Loadcell8 Loadcells (350Ω)
    [mV]Signal Input Range0-19.5mV
    DO2 Normally Open Transistor Switch Outputs
    AO1Analog Signal Output: 4~20mA.
    Communication PortCOM1:RS232;COM2:RS485
    Outline Dimension107 × 60 × 100 mm (W×H×D)
    Net WeightApprox. 1.2kg
    IP GradeIP65

    Keypad Operation

    If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.


    Menu Operation
    Key NameDescription
    【■】Enter Main Menu / Exit.
    8Enter / Save / Alarm Acknowledge.
    【►】

    Cursor shifts right.

    Display the previous option.

    【▲】

    Display the next interface or option.

    Digit input: +1 ( 0~9 loop).


    Quick Operation Mode A

    Parameter [904]= ‘0. dE’ [Default Set]

    Key NameDescription
    【■】*
    • Key-locking.
    • Key-unlocking.

    【►】

    (【SET】)

    Setpoint parameters setting.

    【►】*

    (【ZERO】)

    (【→0←】)

    • [-ZEro]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
    • [≡ZEro]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
    • The controller will switch to Gross Weight display.

    【▲】*

    (【TARE】)

    (【→T←】)

    • [≡tArE]: Manual Tare without Power-down Protection.
    • [-PStr]: Preset Tare Weight with Power-down Protection.
    • [-rStr]: Clear Tare Weight with Power-down Protection.
    • The controller will switch to Net Weight display.

    8

    (【G/N】)

    Gross Weight / Net Weight / Net Weight Peak Value display switch.

    8】*

    (【CLS】)

    • [-CLS] : Clear Screen [Clear the display value of Peak Value].

    Weight / Force Display Digital scale indicator with Red Led Digital Tubes , Mini Digital Scale Indicator

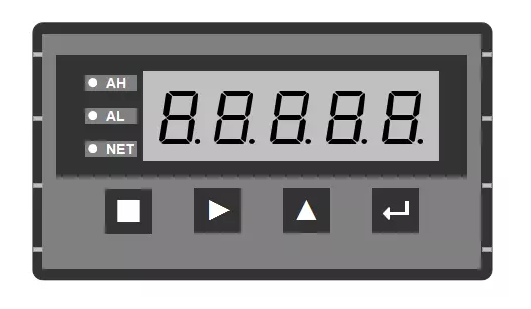

    Operation Interface Diagram:

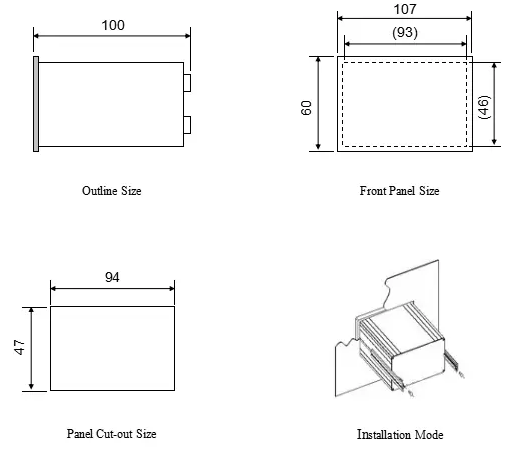

    Installation:


    Package:
