    Led Digital Weighing Controller Single - Material & Double - Speed Feeding

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST106-B21
    Certification : CE
    Price : negotiation
    Payment Terms : Western Union, T/T
    Supply Ability : 6000pcs/month
    Delivery Time : 3workdays
    • Product Details
    • Company Profile

    Led Digital Weighing Controller Single - Material & Double - Speed Feeding

    Led Material Level Digital Scale Indicator Controller Single-Material & Double-speed Feeding

    Main Application:
    Material Level Scale, Hopper Scale&Platform Scale
    Weight Limit DO Alarm Mode
    Weight Increment/Decrement DO Output Mode


    Main Features:
    1: Auto Zero Tracking
    2: Load Calibration&Data Calibration
    3: The Weighing Record can be printed
    4: Definable AO/COM[Communication Port]


    Technical Specifications:

    Power SupplyAC220v
    Display6 VFD Digital Tubes for English and Digit Display
    Sampling Frequency200Hz
    A/D Convert24-bit
    Keypad6 keys for Menu&Shortcut mode operation with key tone
    Excitation Voltage Output of LoadcellDC10V
    Max. Connection number of Loadcell8 Loadcells (350Ω)
    DI3 Normally Open Switch Inputs
    DO4 Normally Open Transistor Switch Outputs
    AO1 Optional and Definable Analog Signal Output: 4~20mA.
    Communication Port

    COM1:Fixed RS232&RS485,Free to use one of them;
    COM2:Optional RS232/RS485/RS422/Profibus-DP/Ethernet

    Outline Dimension170× 91 × 184 mm (W×H×D)
    Net WeightApprox. 2kg
    IP GradeIP65
    Verification Accuracy0.02%
    Static Weighing Accuracy0.2%-0.5%



    Keypad Operation
    If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.

    Menu Operation
    Key NameDescription

    【MENU】
    【ESC】
    (【LOCK】)

    Enter Main Menu.

    Exit.

    Keep it pressed for 2 seconds: Key-locking / Key-unlocking.

    【ENT】Enter/Save/Alarm Acknowledge.
    【◄】Cursor shifts left.
    【►】Cursor shifts right.
    【▲】

    Display the previous option.
    Digit input: +1.

    【▼】

    Display the next option.
    Digit input: -1.

    Quick Operation
    【G/N】APL0 Hopper Weighing Mode: Gross Weight / Net Weight display switch.

    APL1 Ration Feeding/Batching Mode: Gross Weight / Net Weight / Feeding Weight display Switch.

    • [A./b./c.]: Feeding Weight of Material M1/M2/M3.
    • [t.]: Total Feeding Weight.
    【ZERO】
    • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
    • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
    • The controller will switch to Gross Weight display.
    【TARE】
    • [≡tArE≡]: Manual Tare without Power-down Protection.
    • [-PStr-]: Preset Tare Weight with Power-down Protection.
    • [-rStr-]: Clear Tare Weight with Power-down Protection.
    • The controller will switch to Net Weight display.
    【CAL】
    • [-LoAd-]: Load Calibration.
    【▲】【▼】** Keep it pressed for 2 seconds: Setpoint parameters setting.
    【PRINT】Print Weighing/Batching Report.



    Led Material Level Digital Scale Indicator Controller Single-Material & Double-speed Feeding

    LED Dust-proof Operation Interface:

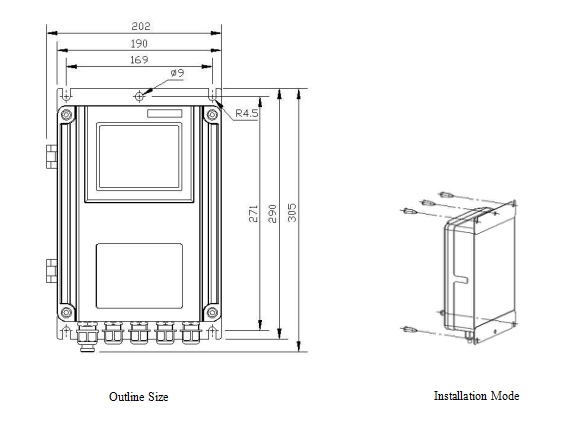

    Panel-mounting Installation:


    Package:
